Home >> Kia >> 2001 >> Sephia LS, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Rear Disc Brake >> Components

Rear Disc Brake: Components

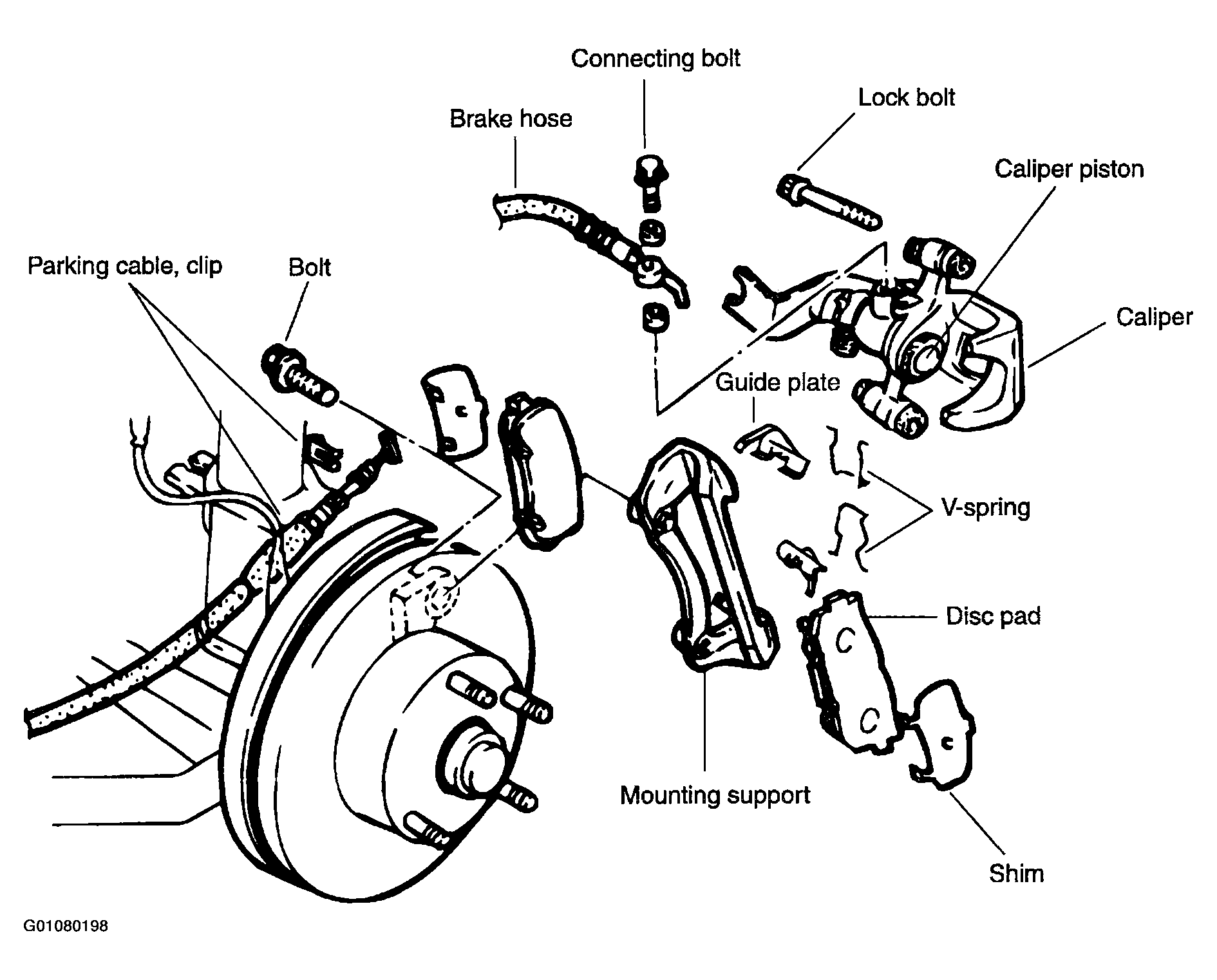

Fig 1: Illustrating Rear Disc Brake Components

G01080198
