Disc Plate

  1. Measure thickness of disc plate.

    Standard: 0.94 in (24 mm)

    Minimum: 0.86 in (22 mm)

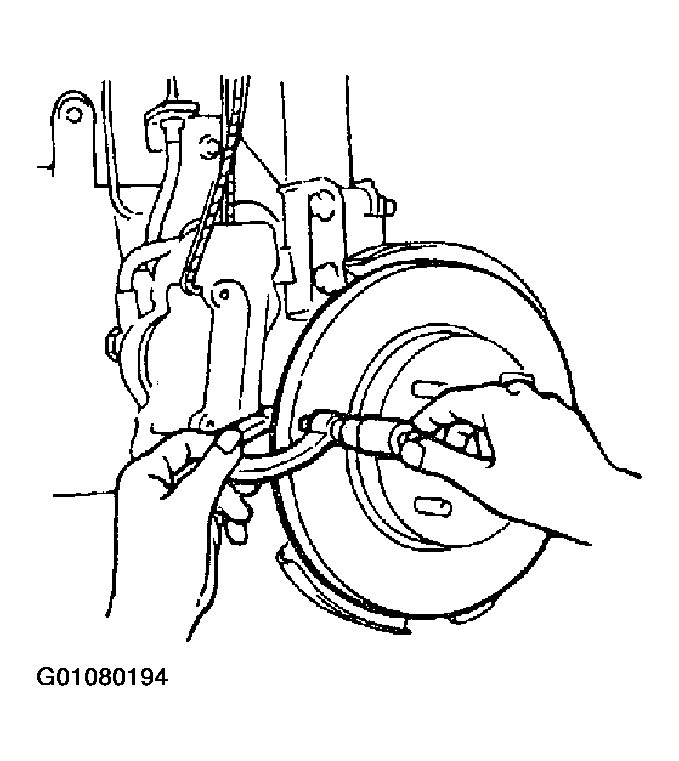

    Fig 1: Measuring Disc Plate
    G01080194
  2. Measure runout at outermost edge of brake rotor.

    Runout: 0.004 in (0.08 mm) Max.

    CAUTION:
    1. There must be no wheel bearing looseness.
    2. Measurement location is outer edge of disc plate surface.

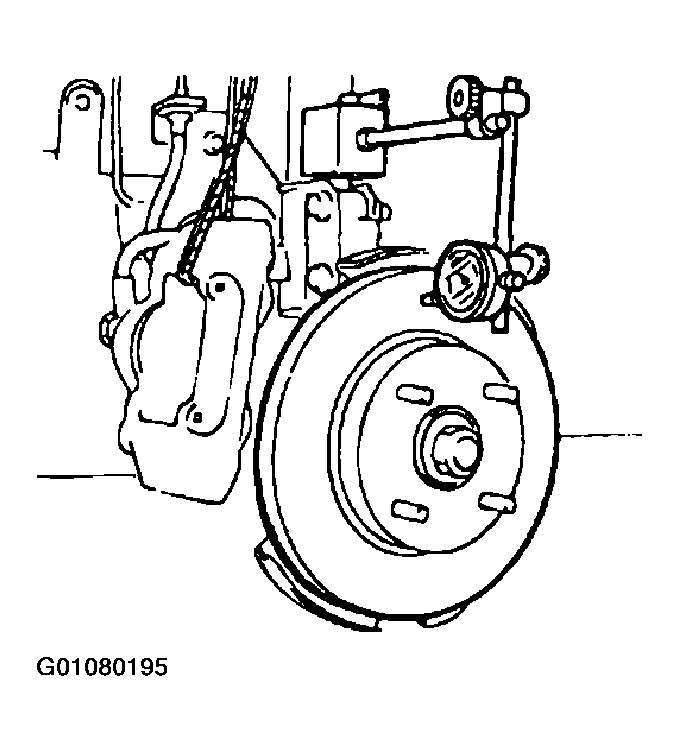

    Fig 2: Measuring Rotor Runout
    G01080195
