Home >> Kia >> 2001 >> Sephia LS, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Bleeding >> Components

Disc & Drum: Bleeding: Components

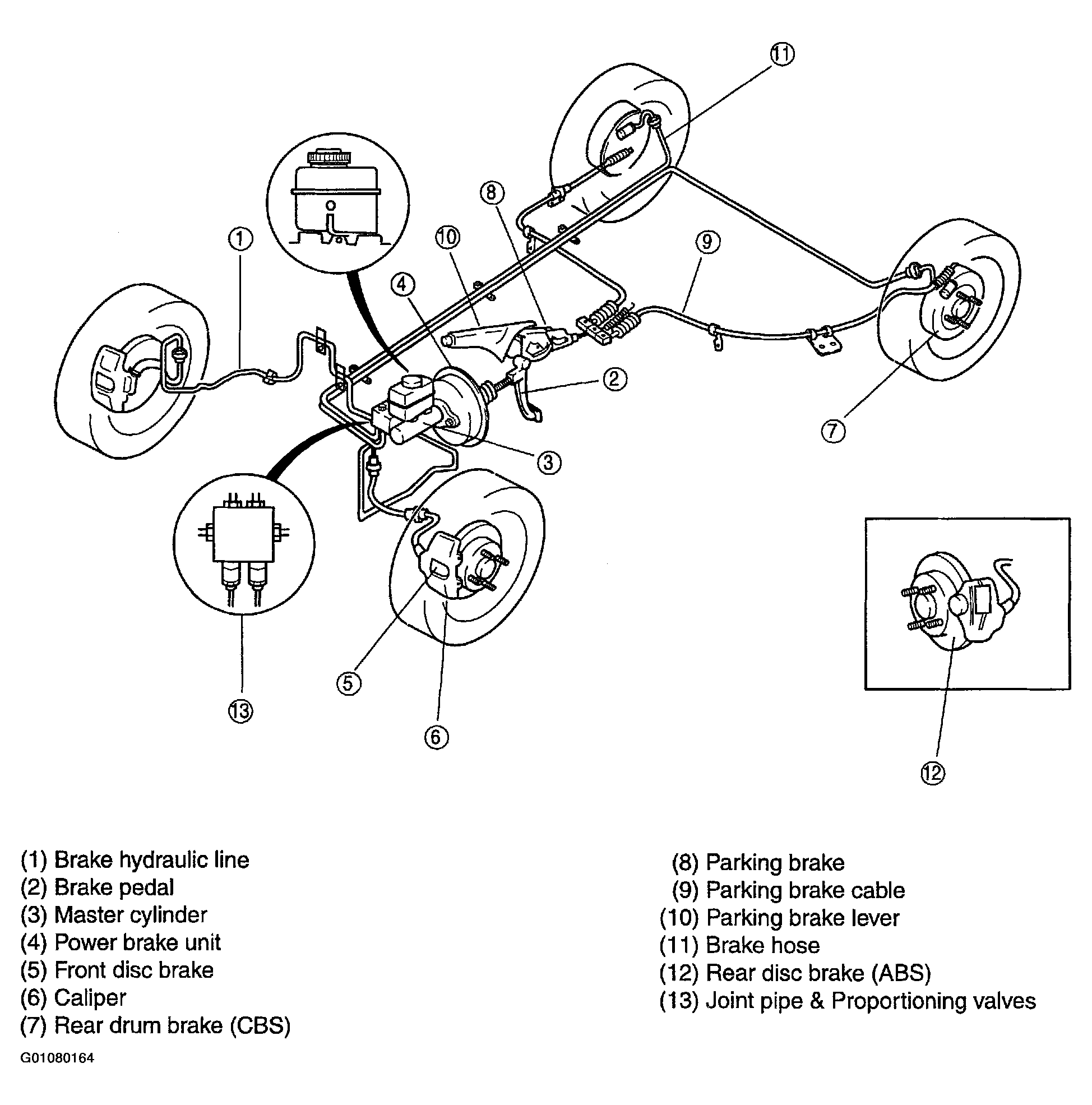

Fig 1: Illustrating Brake System Components

G01080164
