Pin Voltage Tests

Turn ignition switch to ON position. Access TCM harness connector. DO NOT disconnect harness connector. Using DVOM, measure voltage at specified TCM harness connector terminals. See Fig 1-Fig 3 . After verifying that appropriate test condition has been met, check voltage. If voltage is not within specification, check appropriate component or circuit.

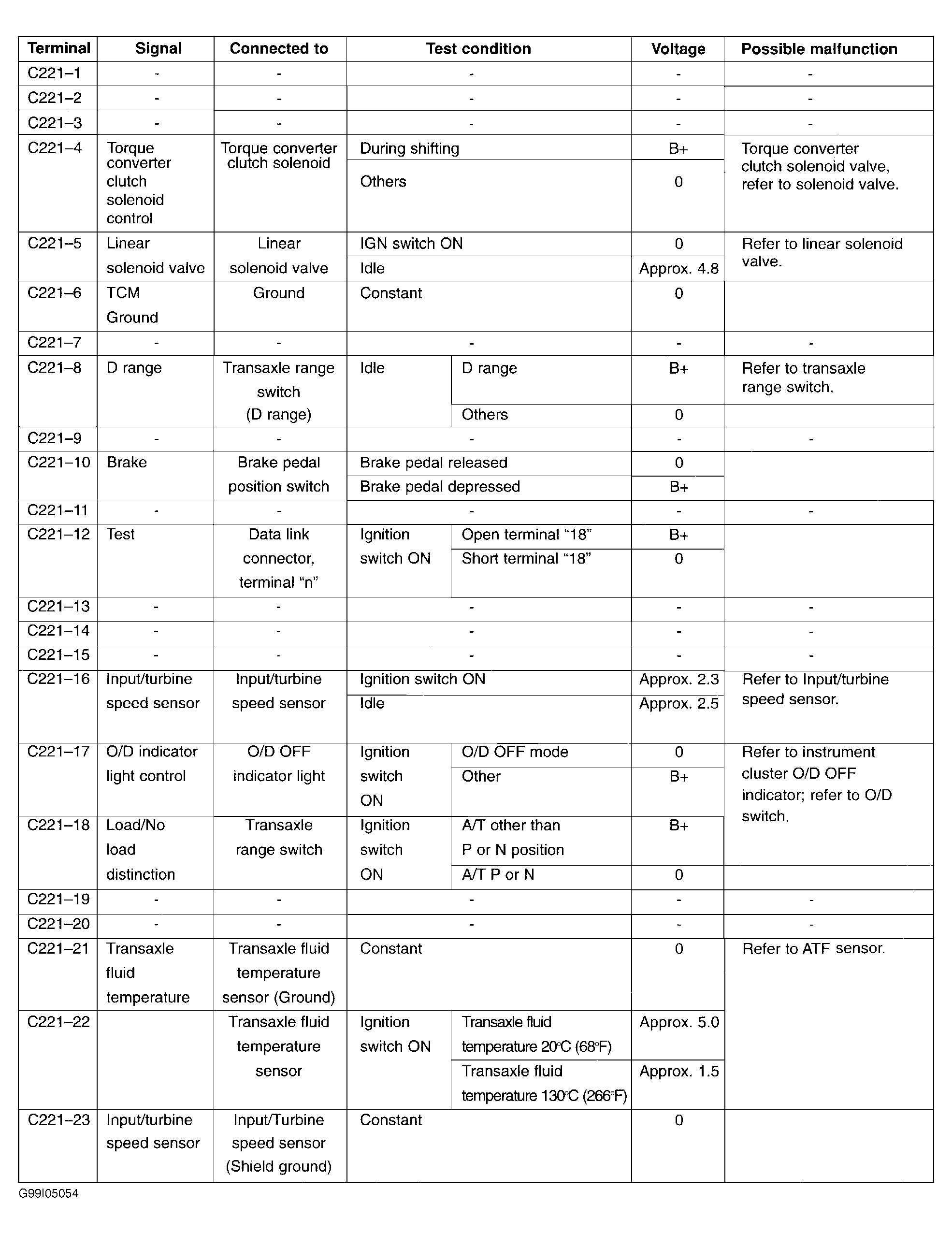

Fig 1: TCM Pin Voltage Tests (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

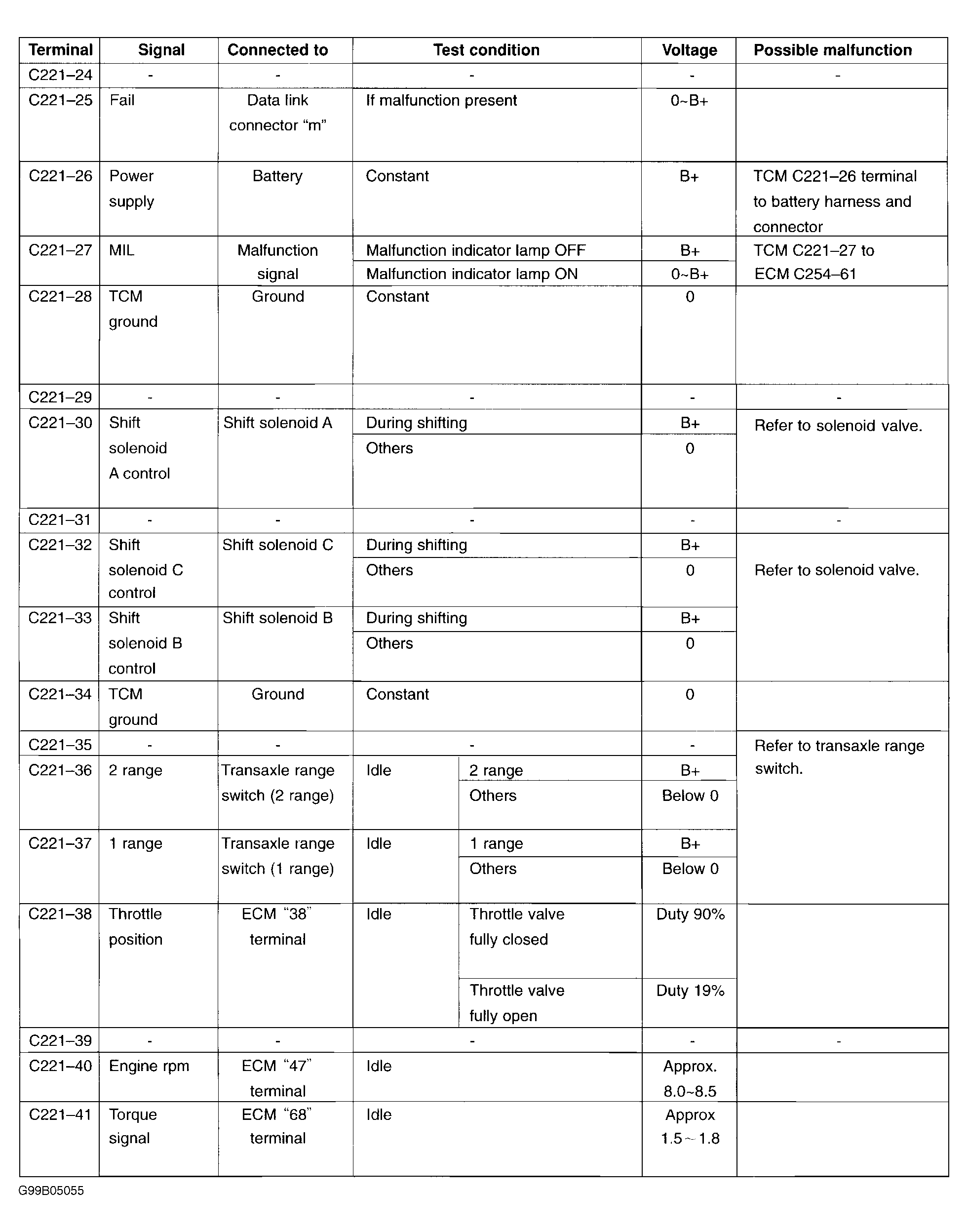

Fig 2: TCM Pin Voltage Tests (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

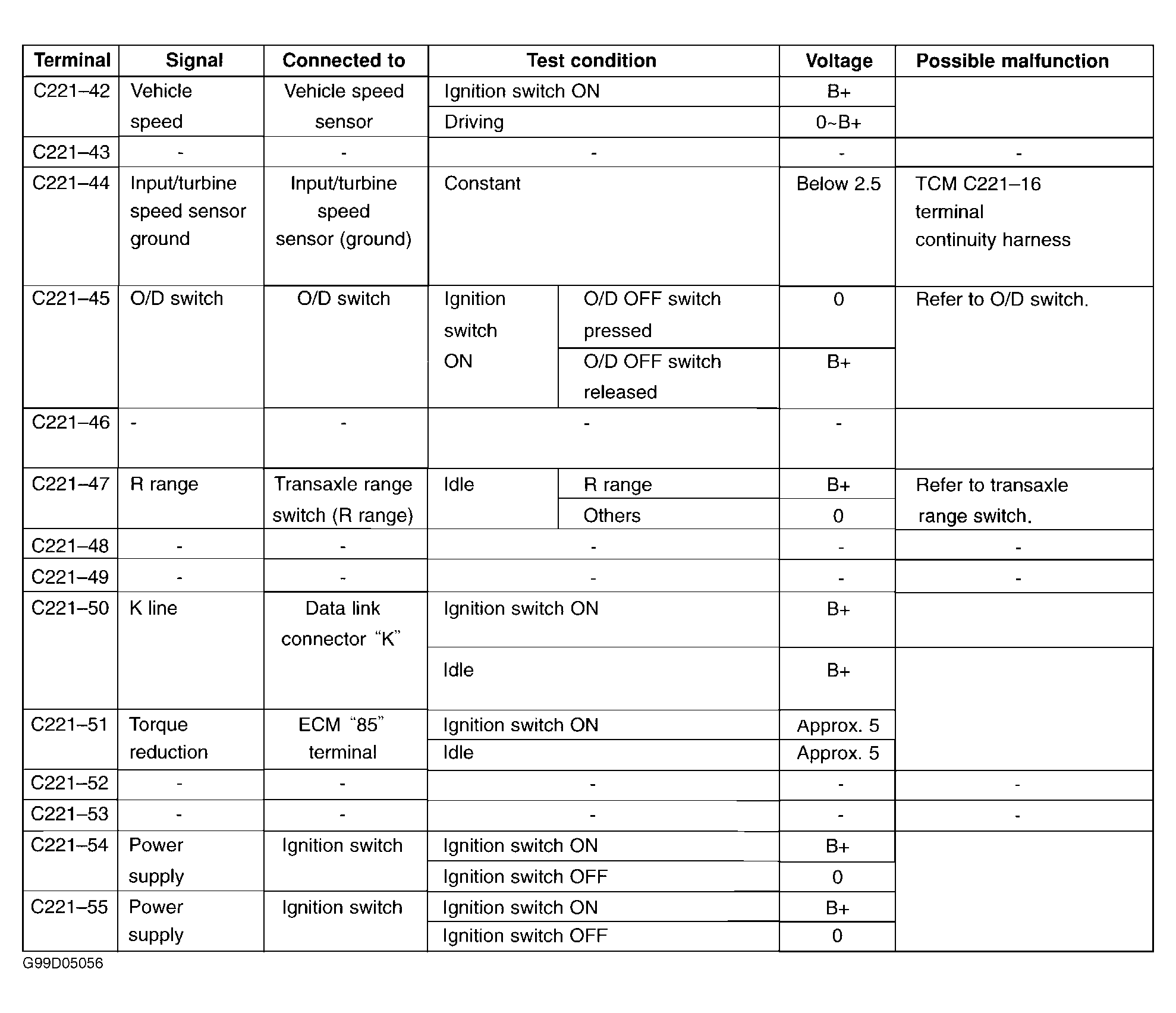

Fig 3: TCM Pin Voltage Tests (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
