Air Bleeding (CBS)

After finishing repair on a hydraulic line (removing brake pipe), bleed air out of the line. Refer to the following:

1. When bleeding air from lines, keep fluid level in reservoir to Max position.
2. Bleed air in the following order:

   Right front wheel, Left front wheel,

   Right rear wheel, Left rear wheel

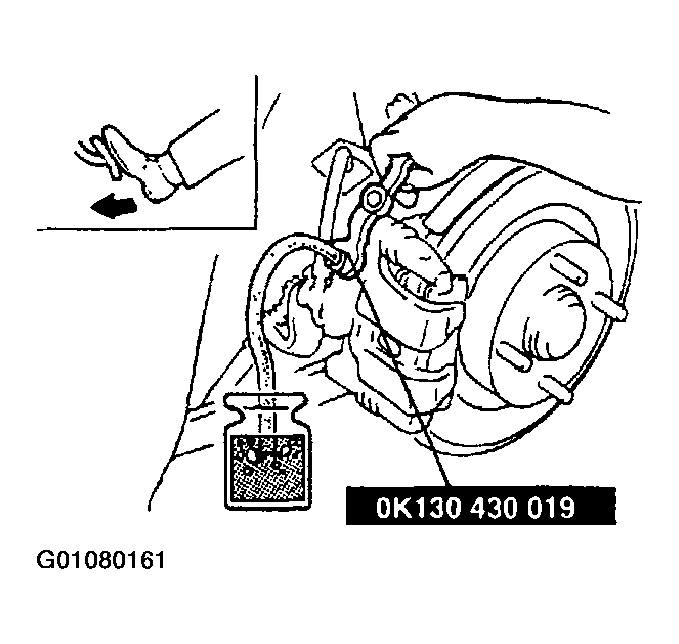

   Fig 1: Illustrating Brake Bleeding Procedure


3. During air bleeding, depress brake pedal at least ten times. Keep the pedal depressed for three seconds to fill the master cylinder.
4. To avoid brake fluids from spouting, install the cap of the reserve tank prior to air bleeding.
5. Keep vehicle level.

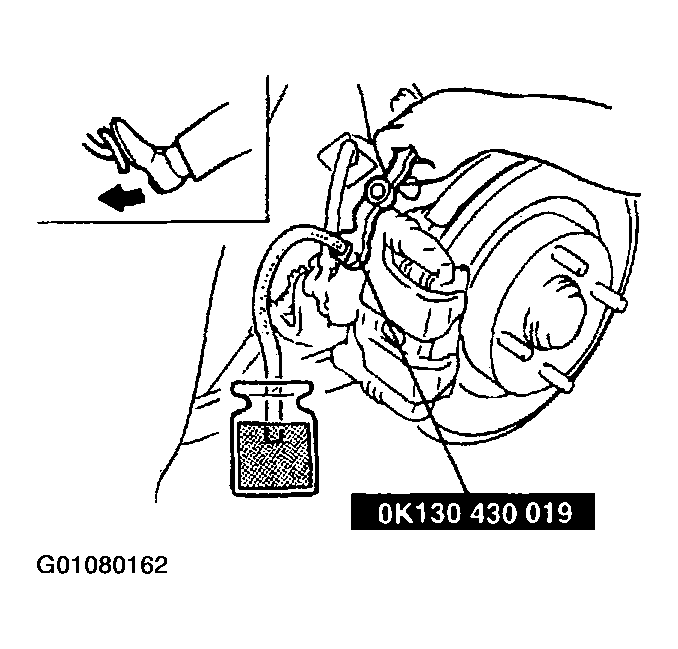

   Fig 2: Illustrating Brake Bleeding Procedure
