Harsh 3-2 Downshift In "D" Position

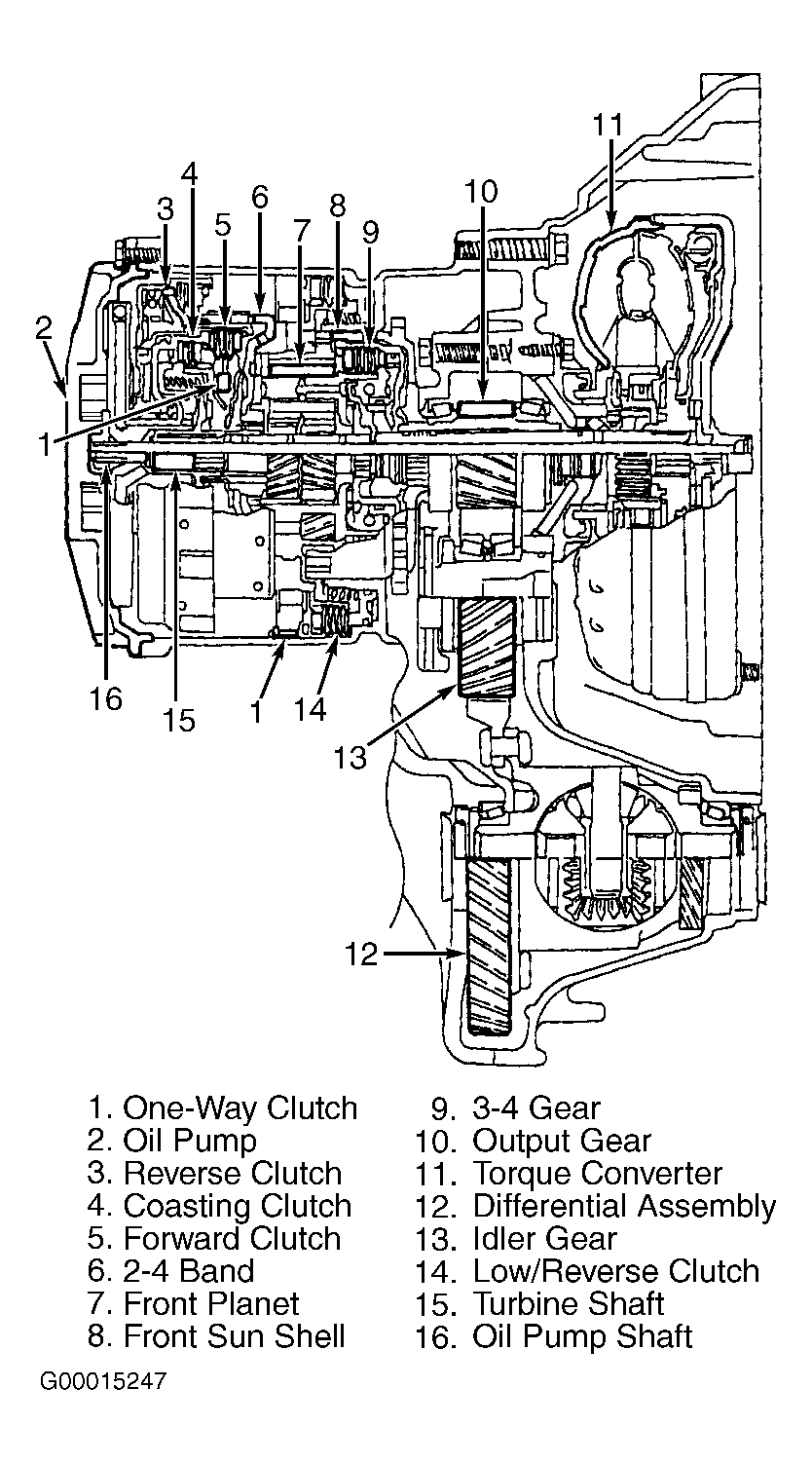

Valve body (check balls missing or damaged or TCC shift valve stuck or damaged), incorrectly tightened valve body bolts (cross-leaks), pump assembly, 2-4 band and servo or 3-4 clutch assembly. See Figure.
