Brake Pedal Free Play: Adjustment

  1. Loosen locknut D and turn rod C to adjust free play.
  2. Verify pedal height and stoplight operation.
  3. Tighten locknut D.

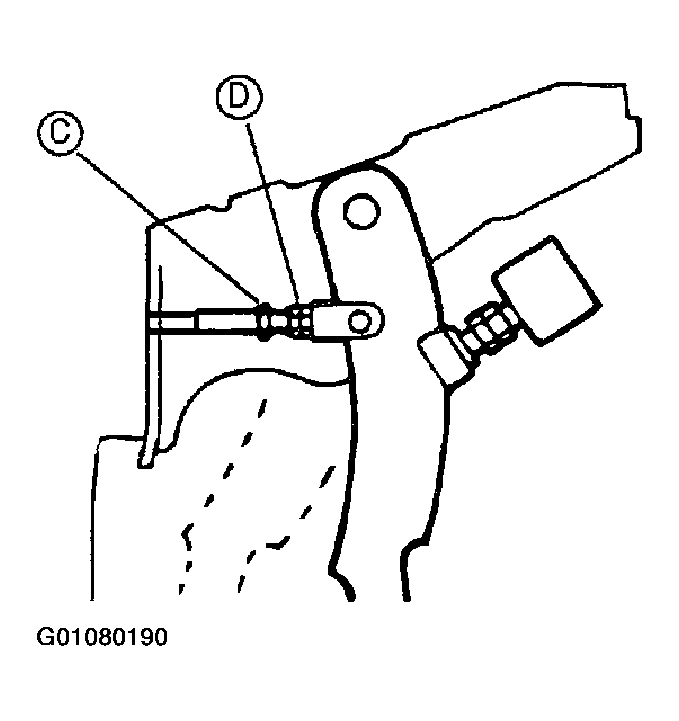

    Fig 1: Adjusting Brake Pedal Free Play
    G01080190
