Rear Drum Brake: Removal

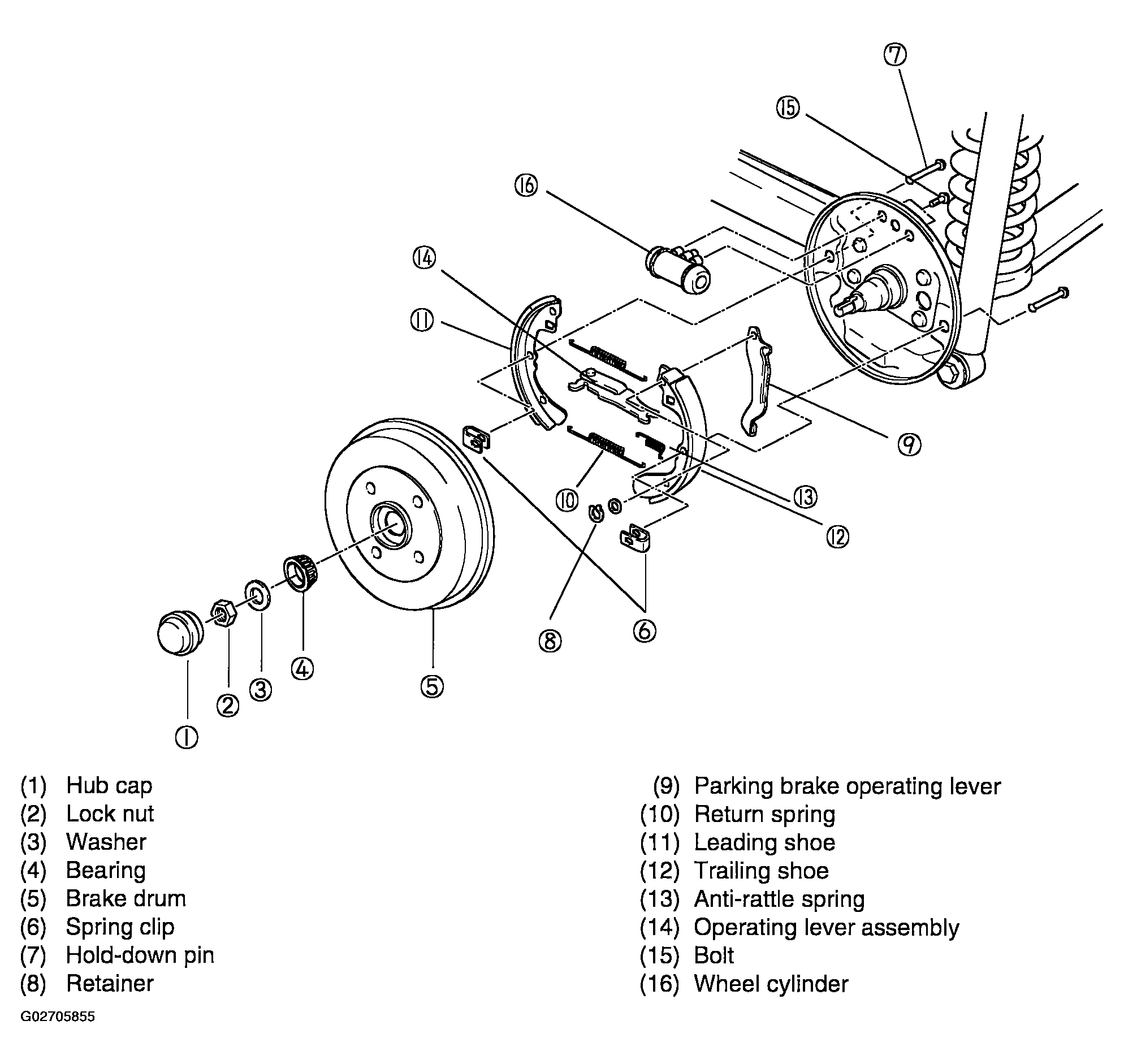

Fig 1: Illustrating Rear Brake System Components
G02705855
  1. Raise and support the vehicle after releasing the parking brake
  2. Remove the wheel and tire.
  3. Remove the hub cap.
  4. Use a small cape chisel to raise the staked edge of the lock nut.

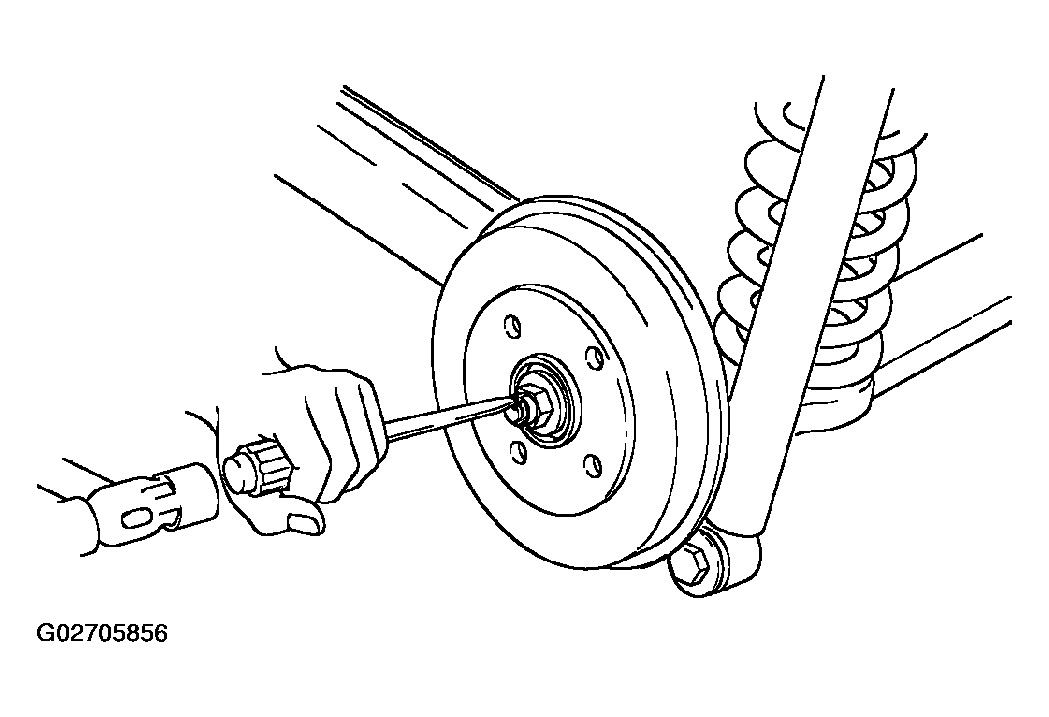

    Fig 2: Raising Staked Edge Of Lock Nut
    G02705856
    NOTE: Use care not to damage the groove and threads of spindle.
  5. Remove the drum, washer and bearings as an assembly from the spindle.

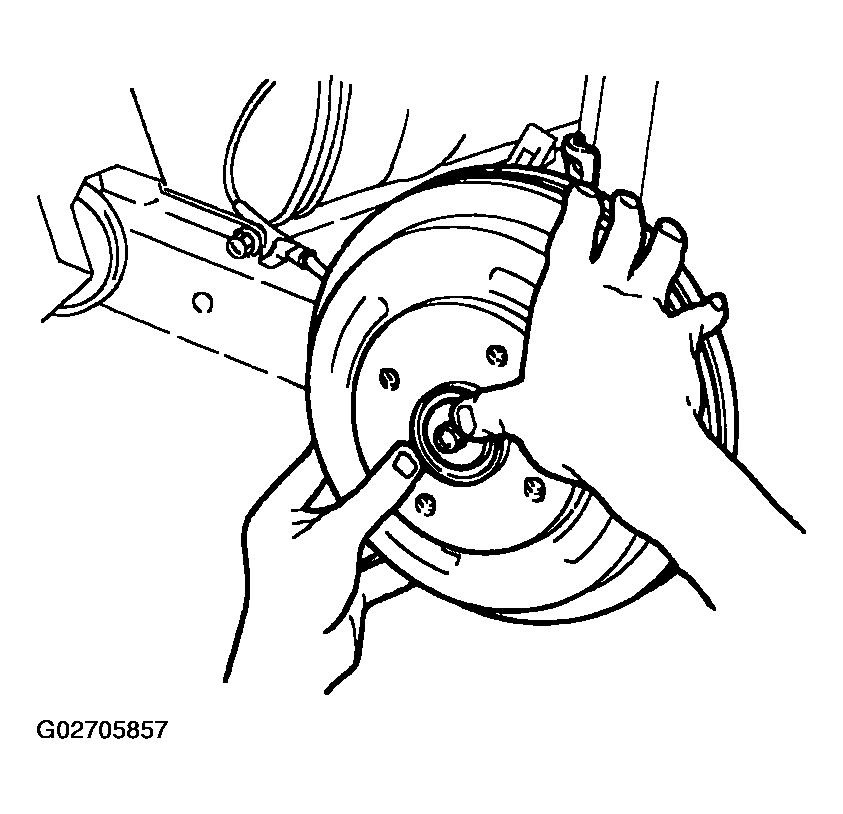

    Fig 3: Removing Drum, Washer And Bearings
    G02705857
  6. Remove the brake shoe hold-down springs and pins.

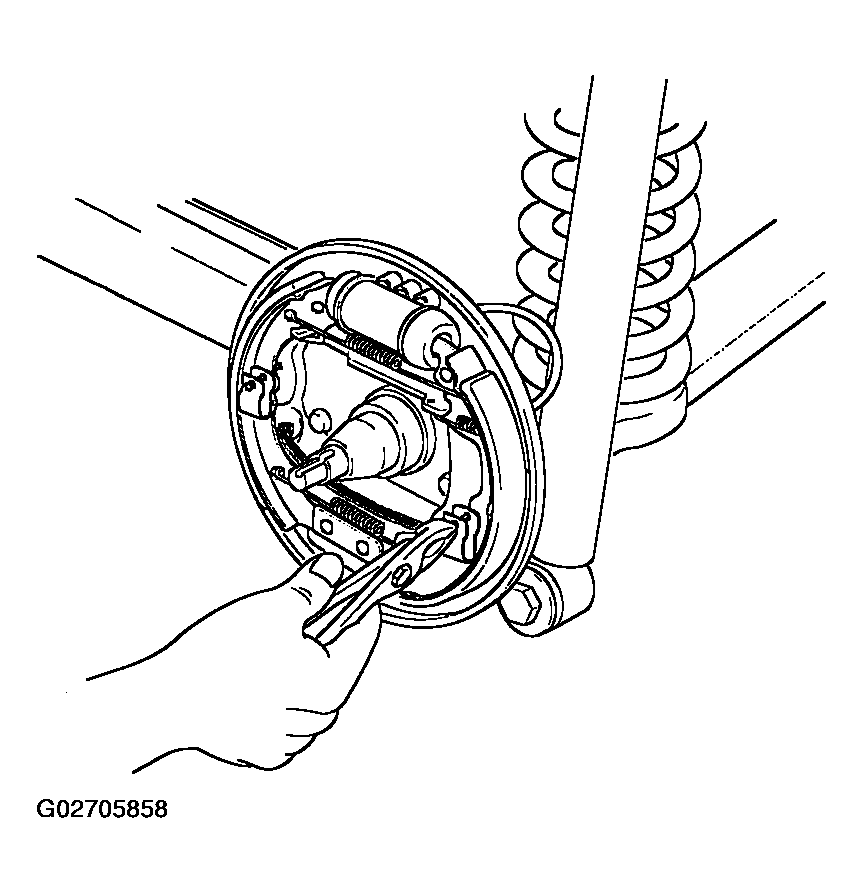

    Fig 4: Removing Brake Shoe Hold-Down Springs And Pins
    G02705858
  7. Remove the brake shoe assembly.

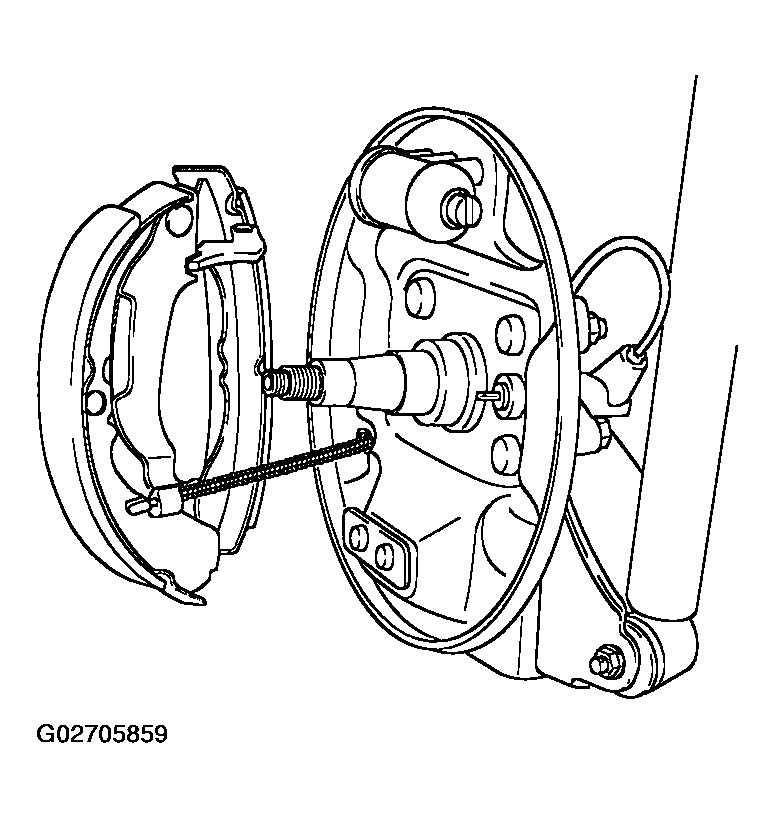

    Fig 5: Removing Brake Shoe Assembly
    G02705859
  8. Remove the parking brake cable from the brake shoe assembly.

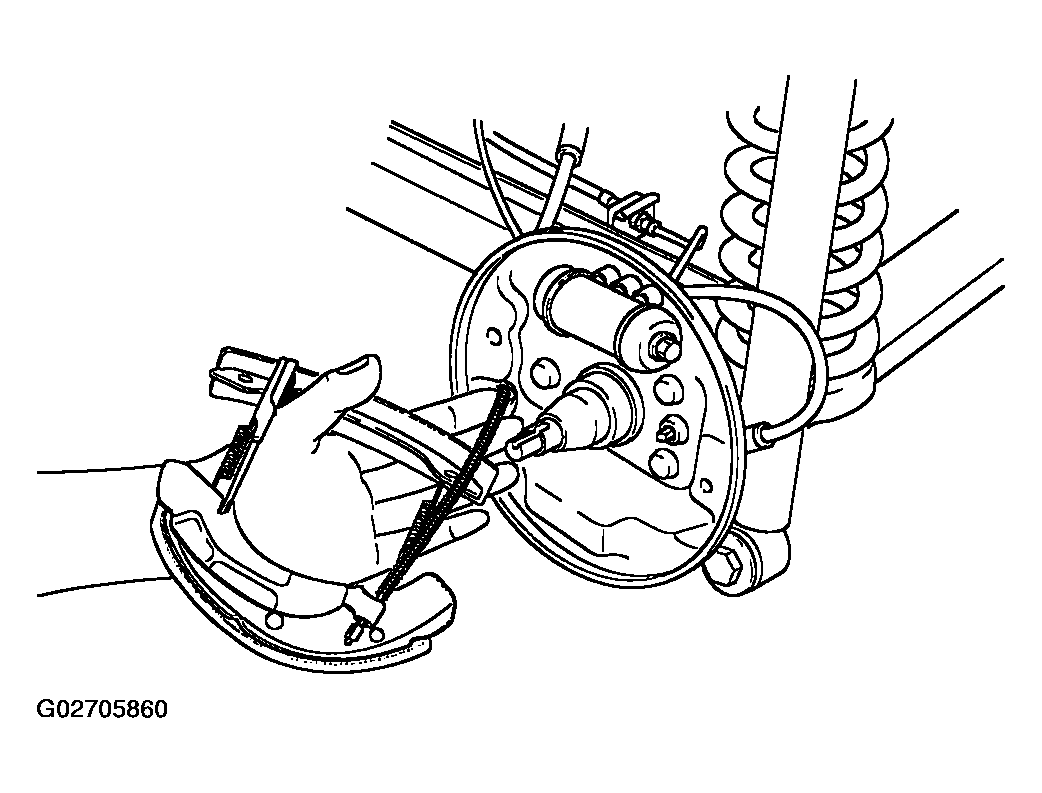

    Fig 6: Removing Parking Brake Cable
    G02705860
  9. Remove the wheel cylinder brake pipe.
  10. Remove the wheel cylinder attaching bolt.
  11. Remove the anti-rattle spring from brake shoe assembly.
  12. Remove the operating lever after removing the return spring.
  13. Remove the parking brake operating lever retainer.
