Parking Brake Cable

  1. Ensure the parking brake lever is in the fully released position.
  2. Raise the vehicle and ensure the rear wheels are free to turn.
    3. NOTE: The rear brakes should lock when the parking brake lever is pulled upward 5-7 notches.

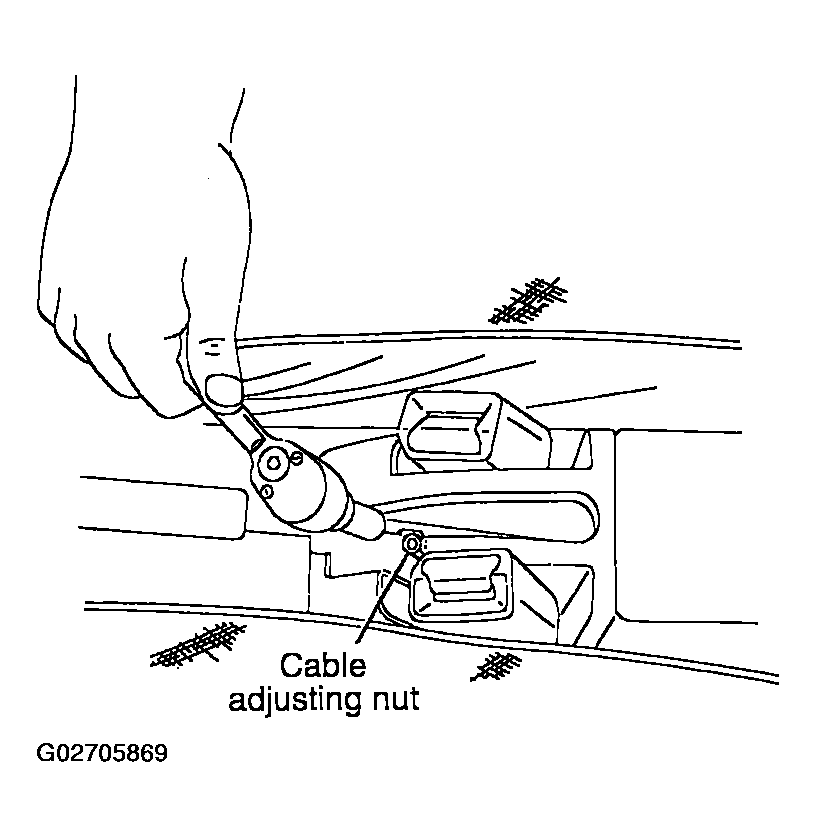

    Fig 1: Adjusting Cable Length
    G02705869

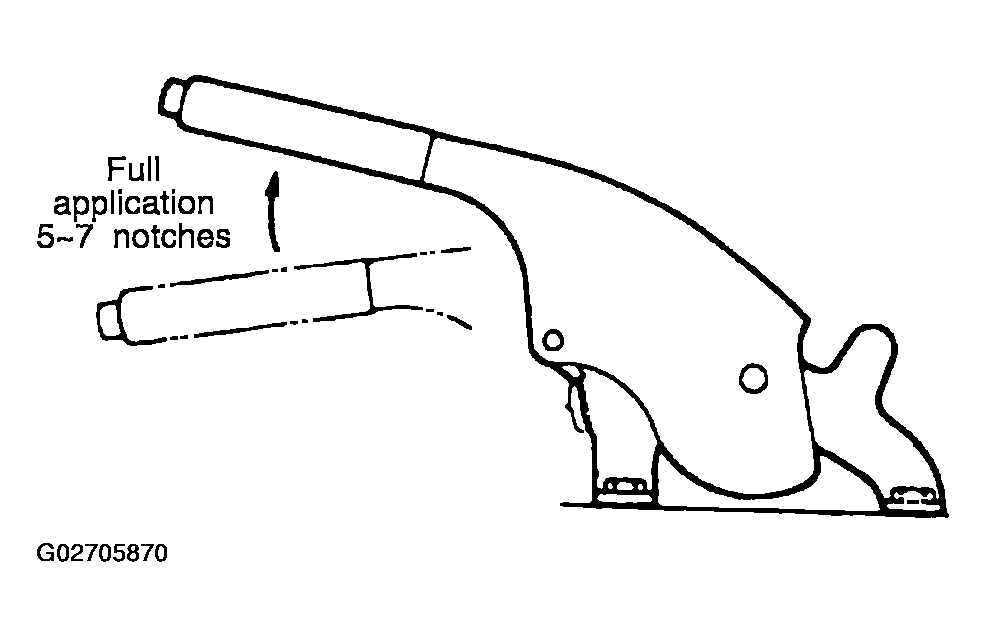

    Fig 2: Testing Brake Lever Travel
    G02705870
  3. Adjust the cable length with adjuster nut so that the number of sector notch is 5-7 when pulling force of 10 kg.
  4. Do not attach parking cable with 90° or more twist.
  5. Check the operation of the parking brake.
