Removal And Installation

  1. Remove the brake pipe shown in the figure.
  2. Remove the bolt.
  3. Remove the proportioning valve.
  4. Install in the reverse order of removal.
  5. After the installation, add brake fluid, bleed air and check for the fluid leakage.

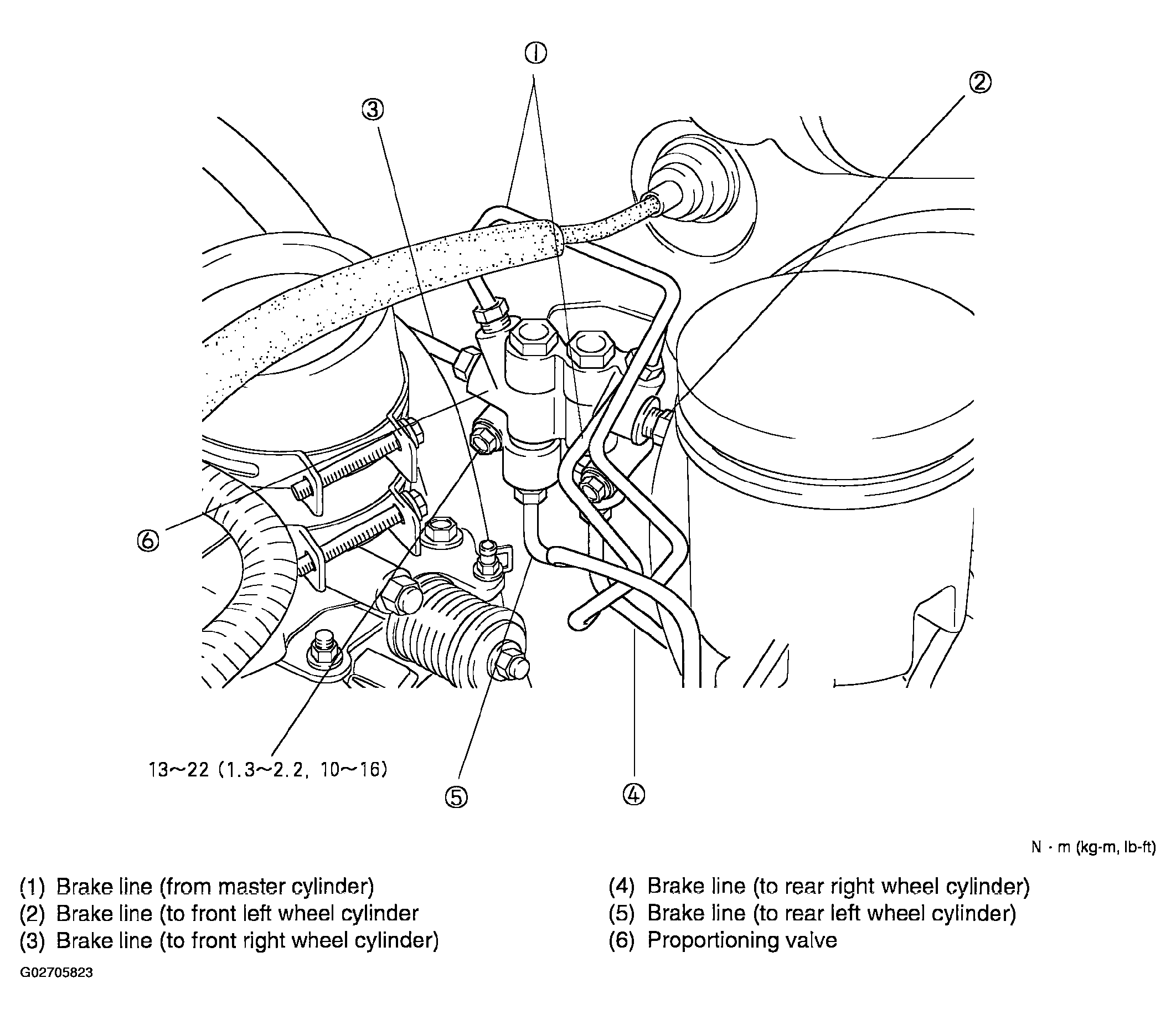

    Fig 1: Illustrating Proportioning Valve Connections
    G02705823
