Fluid Pressure

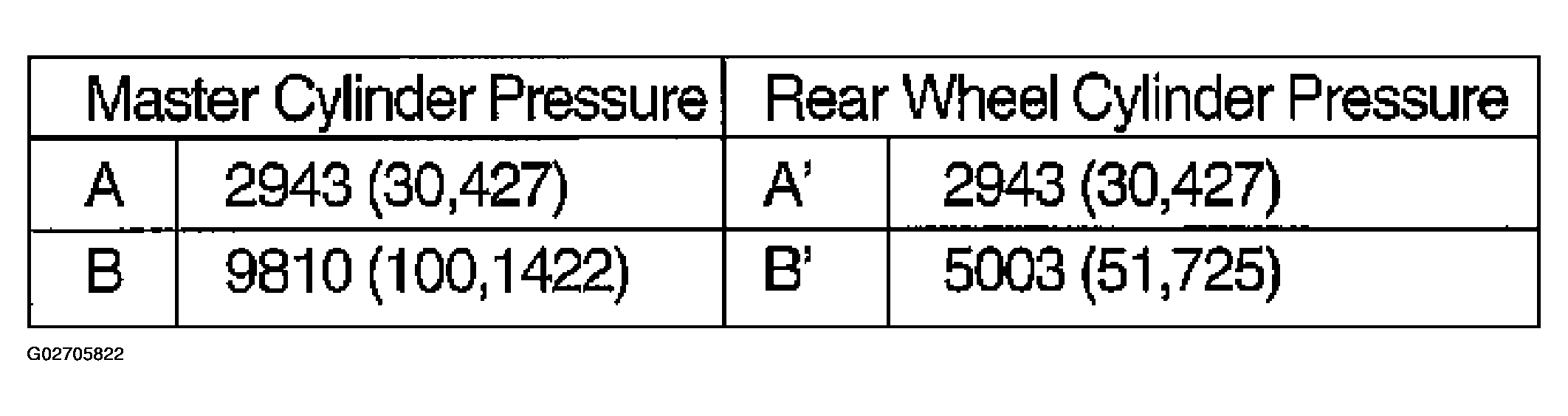

Fig 1: Fluid Pressure Chart
G02705822
CAUTION:
  • Do not attempt to adjust the dual proportioning valve.
  • After the inspection, bleed the air from the brake system and check for the fluid leakage.
  • If the measurements are not within the specification, replace the valve assembly.
