Power Brake Unit: Removal

  1. Disconnect the fluid level warning connector.
  2. Remove the brake pipes.
  3. Remove the master cylinder
  4. Disconnect the vacuum supply hose from the power brake unit.

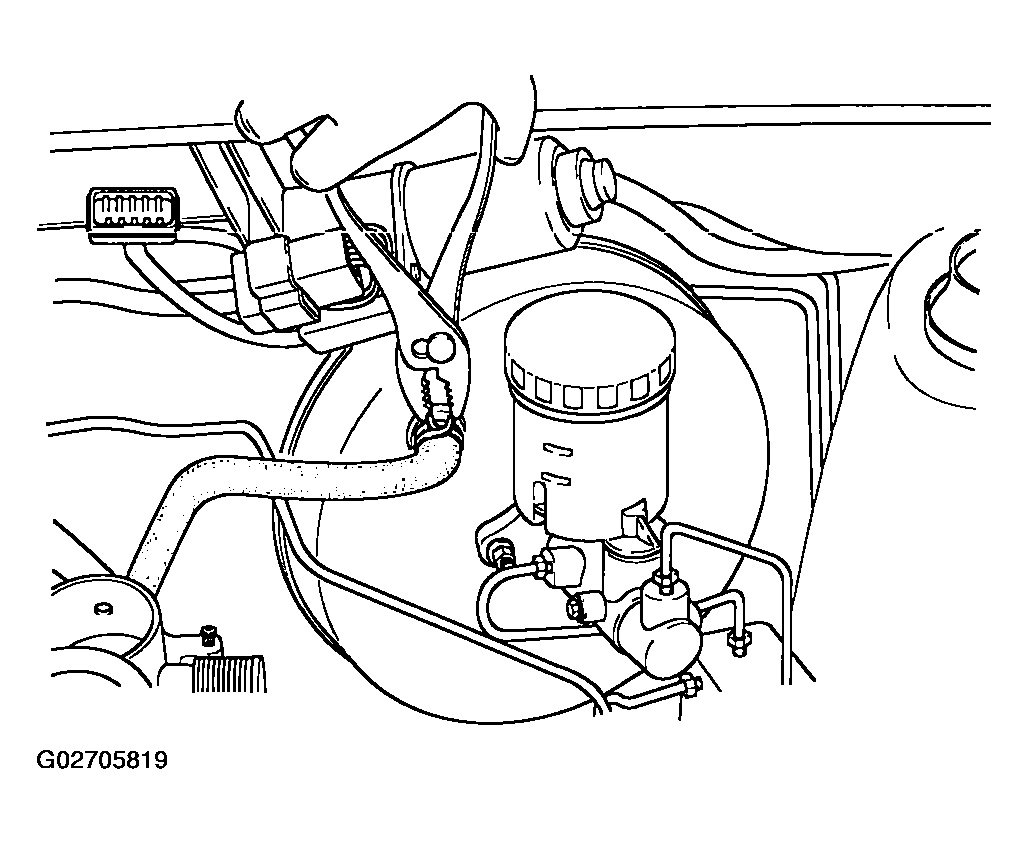

    Fig 1: Disconnecting Vacuum Supply Hose
    G02705819
  5. From inside the vehicle, remove the cotter pin securing the clevis pin.
  6. Remove the clevis pin from the clevis.
  7. Have a second technician support the brake booster in the engine compartment.
  8. Remove the four brake booster mounting nuts securing the brake booster to the bulkhead.
  9. Remove the brake booster.
  10. Remove the gasket between the brake booster and the bulkhead.
