Power Brake Unit: Notes

CAUTION: Take the following steps after the installation:
  1. Add a fluid and bleed the air.
  2. Check all parts for the fluid leakage.
  3. Adjust and check the brake pedal operation.
  4. Make an on-vehicle check of the unit.

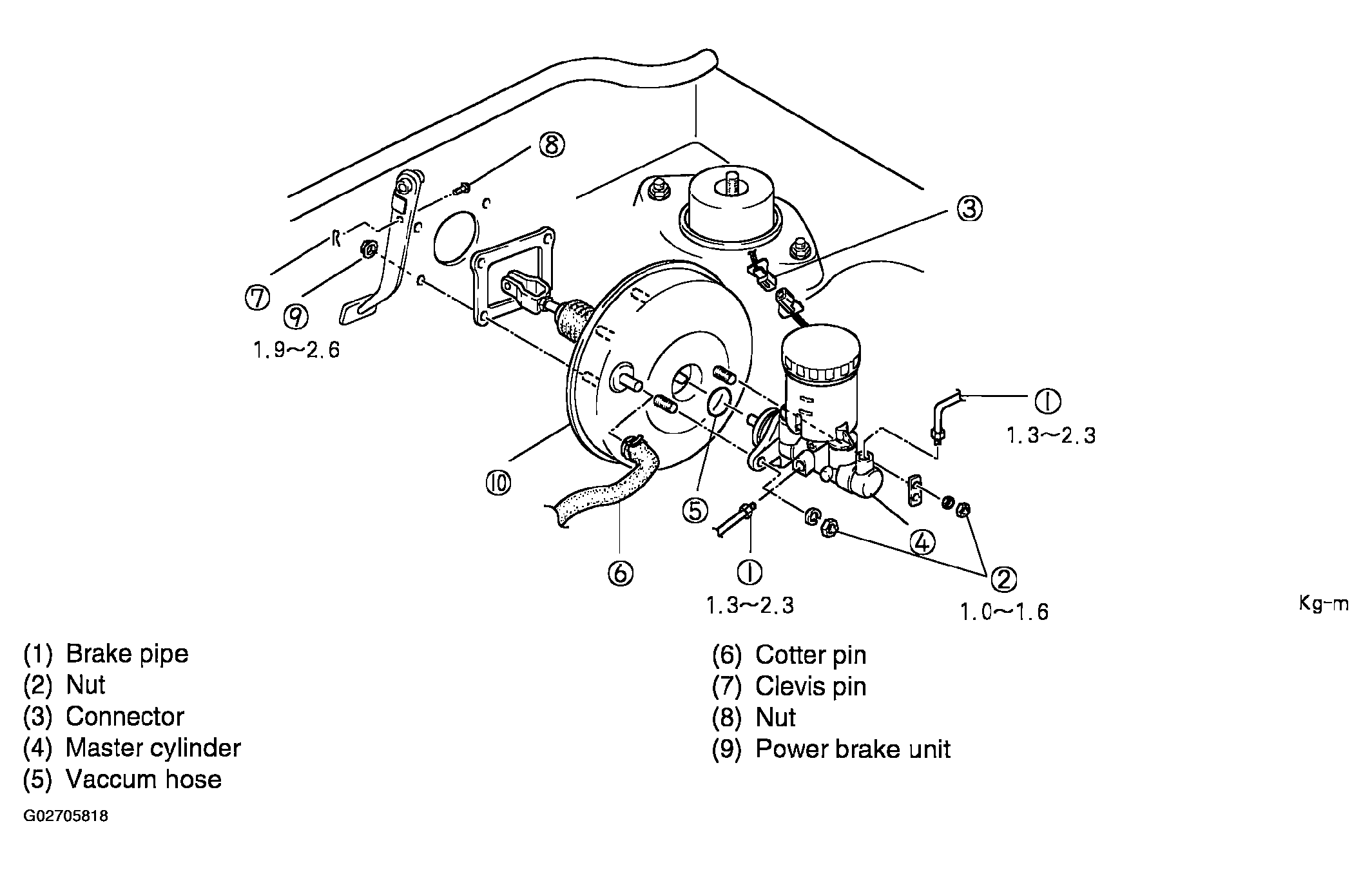

    Fig 1: Illustrating Power Brake Components
    G02705818
