Master Cylinder: Removal

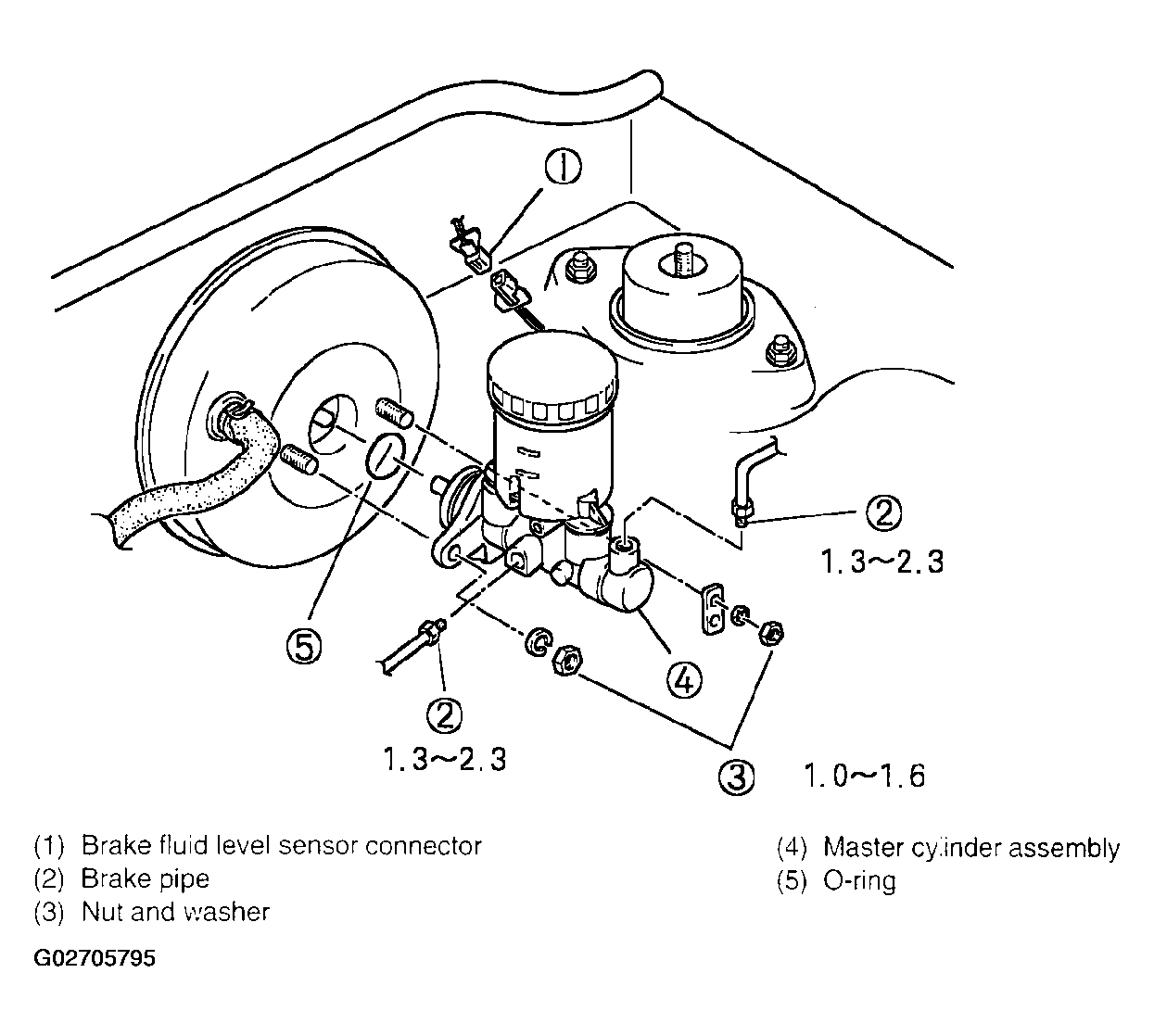

Fig 1: Illustrating Master Cylinder Assembly Components
G02705795
  1. Disconnect the low fluid level sensor wiring connector.
  2. Disconnect the brake pipes from the master cylinder and ABS control unit by using SST(0K130 430 019).  Cap the tubes and plug the master cylinder ports and ABS control unit ports to prevent the entry of contaminants.

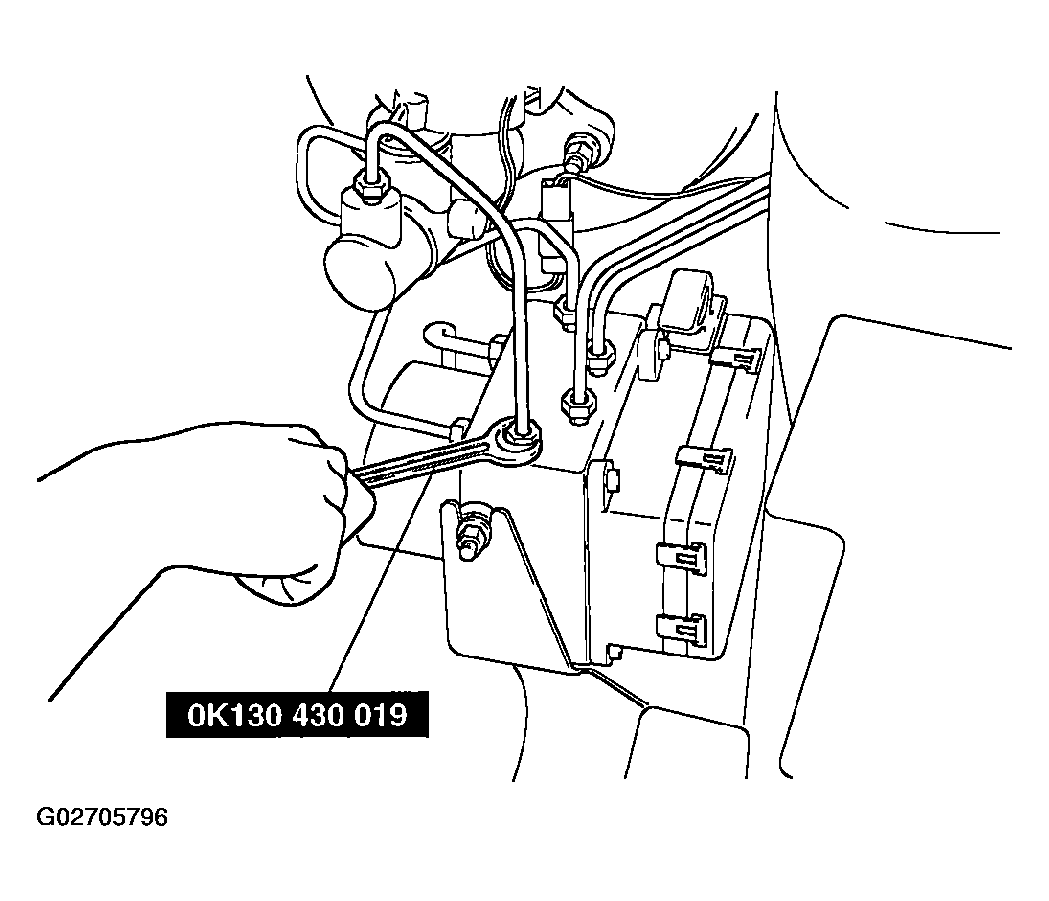

    Fig 2: Disconnecting Brake Pipes
    G02705796
  3. Remove the two master cylinder attaching nuts and washers.
  4. Remove the master cylinder from the mounting studs on the brake booster.
