Home >> Kia >> 2001 >> Rio Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Hydraulic Brake System >> Disassembly/Inspection/Assembly >> Notes

Hydraulic Brake System: Disassembly/Inspection/Assembly: Notes

CAUTION:
  • Secure the master cylinder flange in a vise when necessary.
  • Replace the piston assembly, if necessary.

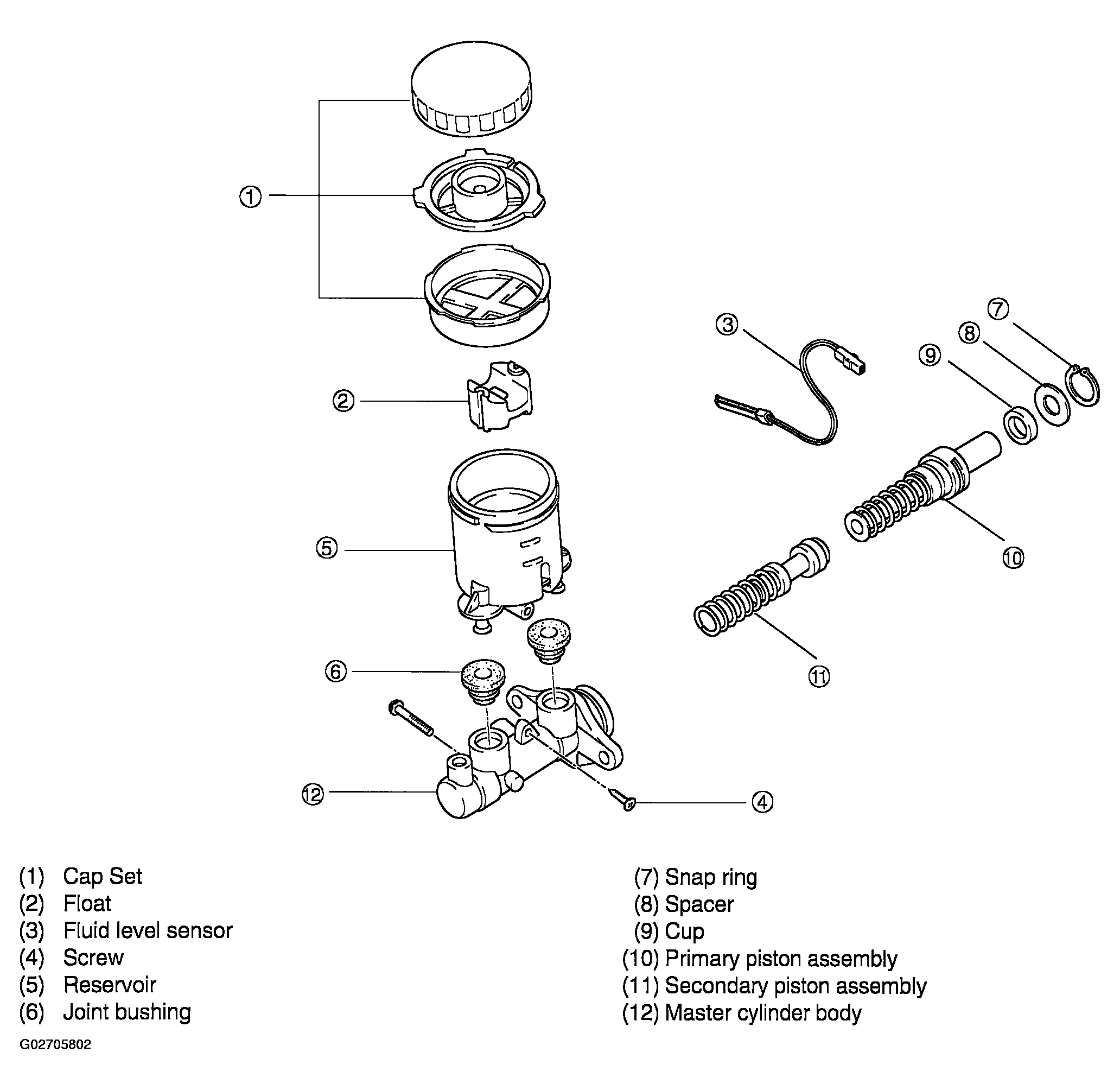

    Fig 1: Illustrating Master Cylinder Components
    G02705802
