Pedal-To-Floor Clearance: Inspection

Verify that the distance from the floor panel to the center of the pedal pad is as specified when the pedal is depressed with a force of 490.33 N (50 kg) MIN.

Pedal-to-floor clearance: 2.76 in. (70 mm)

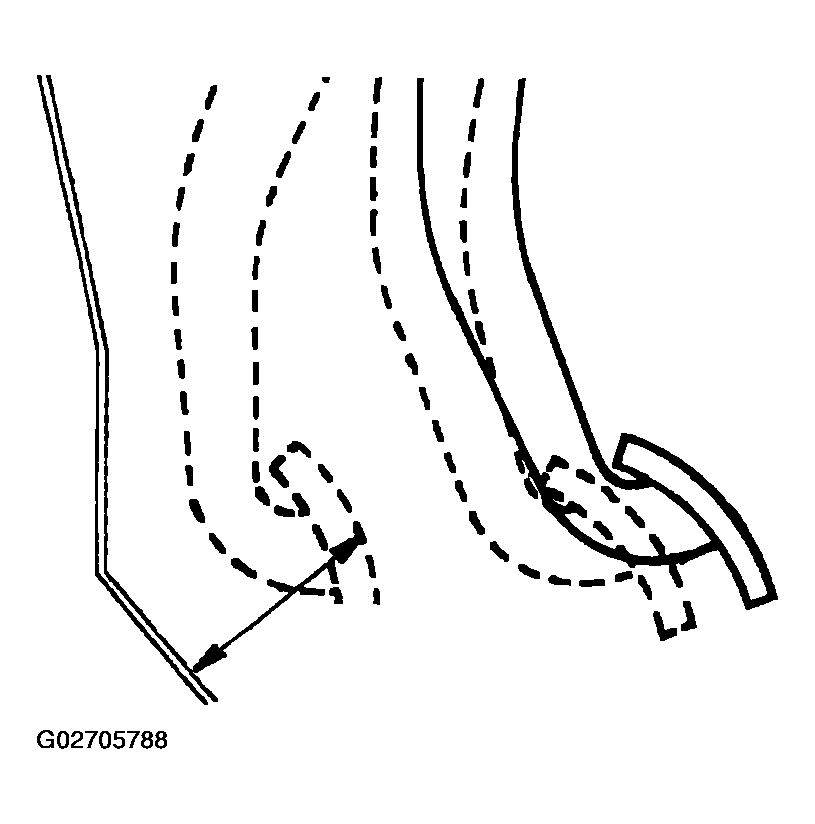

Fig 1: Measuring Pedal-To-Floor Clearance

If the distance is less than specified, check for the following problems:

1. Air in brake system
2. Malfunction of automatic adjuster (rear drum brakes)
3. Worn shoes or pads
