Pedal Play: Inspection

  1. Depress the pedal a few times to eliminate the vacuum in the system.
  2. Gently depress the pedal by hand and check the free play (until resistance is felt).

    Free play: 0.16~0.28 in (4~7 mm)

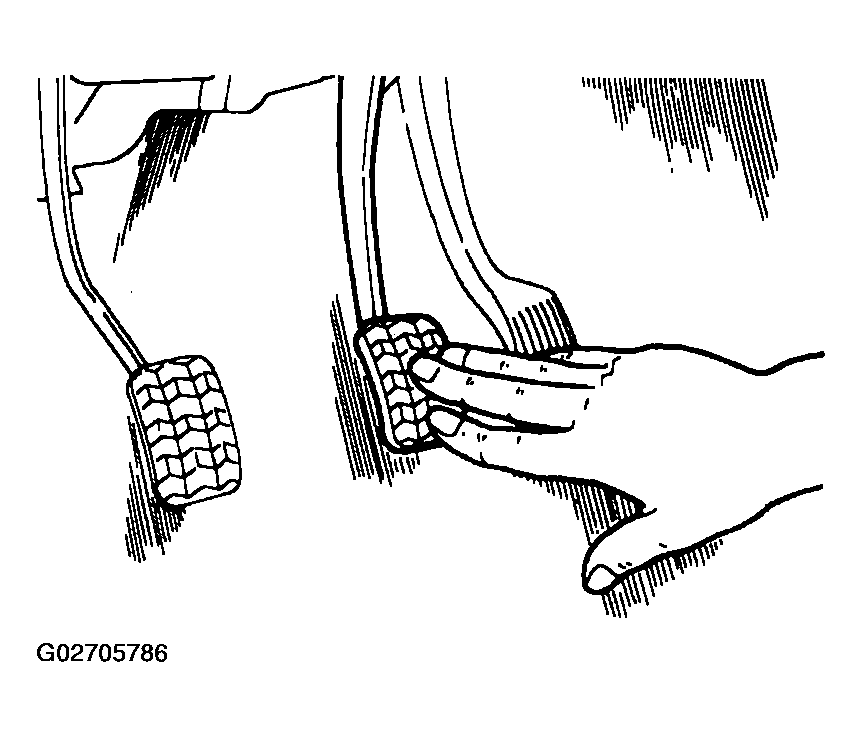

    Fig 1: Checking Pedal Free Play
    G02705786
