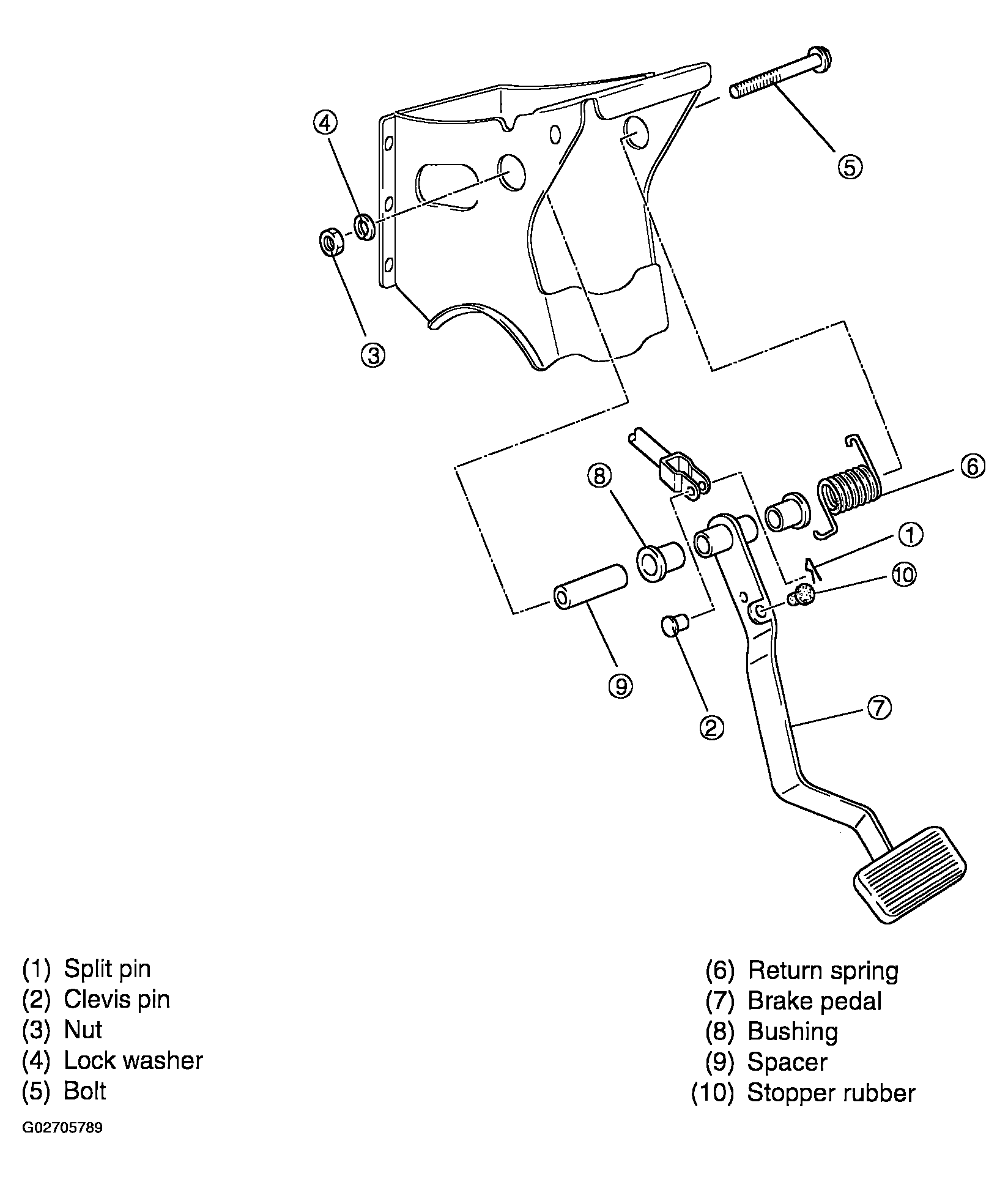

Pedal Assembly: Removal
- Disconnect the negative battery cable.
- Remove the split pin from the brake pedal clevis pin and remove the pin.
- Remove the pivot bolt attaching nut, lock washer, and spring washer.
- Remove the spacer from the pivot bolt.
- Slide the pivot bolt to the right and remove.
- Remove the brake pedal, brake pedal return spring, and spacers.
- If necessary, remove the brake pedal bushings, foot pad, and stop bumper.
