Brake Pedal Height: Adjustment

  1. Disconnect the stoplight switch connector.
  2. Loosen the lock nut (circle B) and turn the switch (circle A) until it does not contact the pedal. See Figure .

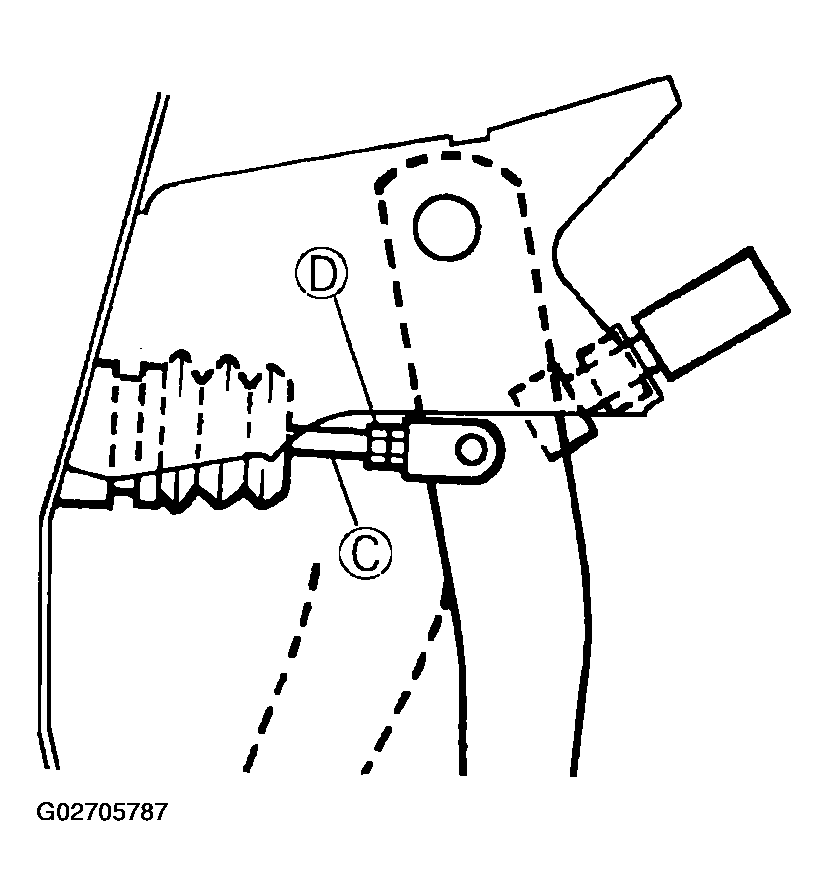

  3. Loosen the lock nut (circle D) and turn the rod (circle C) to adjust the height of the brake pedal. See Figure .
  4. Tighten the stoplight switch until it contacts the pedal then turn it an additional 1/2 turn  . Tighten the lock nuts (circle B and circle D).

    Tightening torque: 23.5~34.3 N.m (2.4~3.5 kg/cm, 17.4~25.3 lb-ft)

  5. Verify the operation of the stoplights.
