Flexible Hose: Removal

  1. Remove the brake pipe with the SST  .
  2. Disconnect the clip and remove the flexible hose from the bracket.

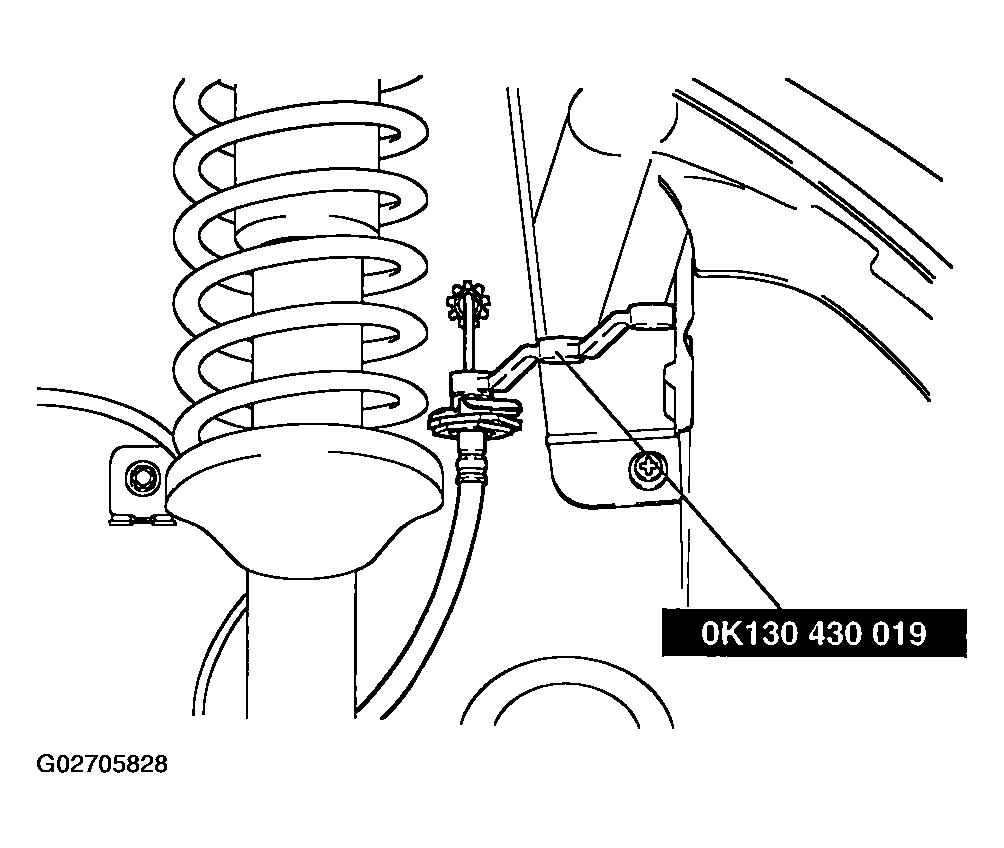

    Fig 1: Removing Brake Hose
    G02705828
