Disc Pad: Installation

Push the piston back into the caliper bore by using SST .

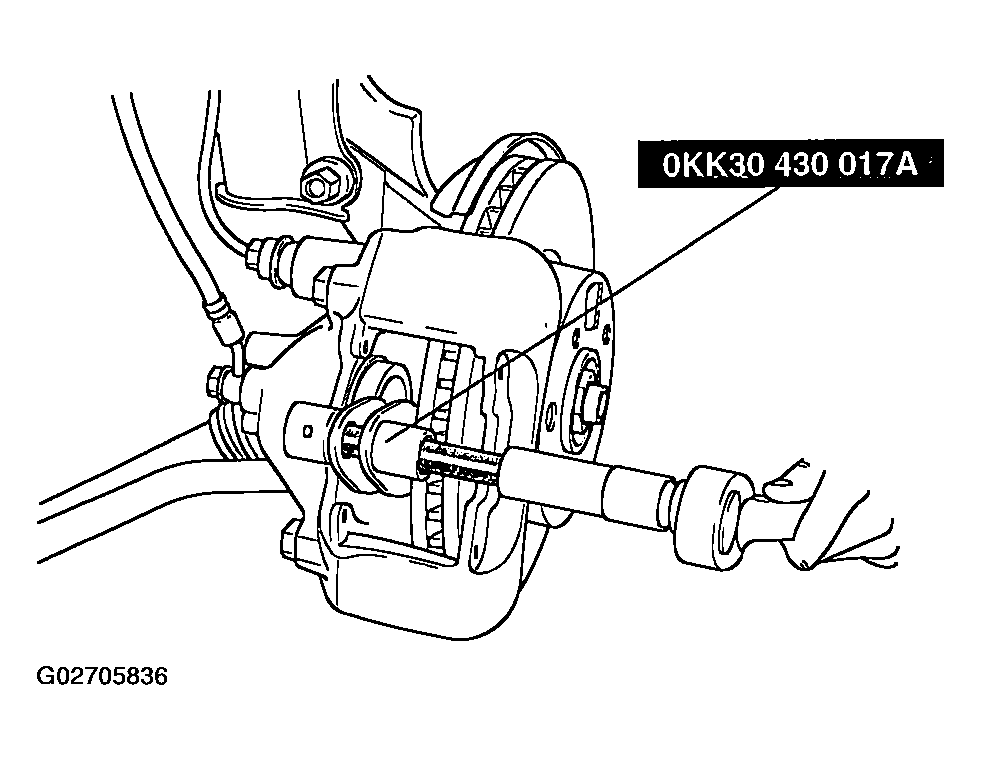

Fig 1: Pushing Piston Into Caliper
Apply the grease supplied with the brake pad set to both surfaces of the inner shim and to the back of the brake pad.
NOTE: Ensure the shims are installed with the inner and outer pads.

Fig 2: Applying Grease
Install the brake pads and shims.
Install the brake pad pins.
Install the anti-rattle spring.
Install the brake pad pin retainer.
Install the wheel and tire assembly. Tighten the wheel attaching bolts.
Tightening torque: 88~118 N.m (9.0~12.0 kg-m, 65~87 lb-ft)

Fig 3: Tightening Wheel Nuts To Specifications
Lower the vehicle.
Check the master cylinder fluid level. Add a fluid as necessary.
