Service Adjustment Procedure: Caliper: Removal

  1. Remove the brake pads.
  2. Remove the caliper brake hose bolt. Discard the seal washers.

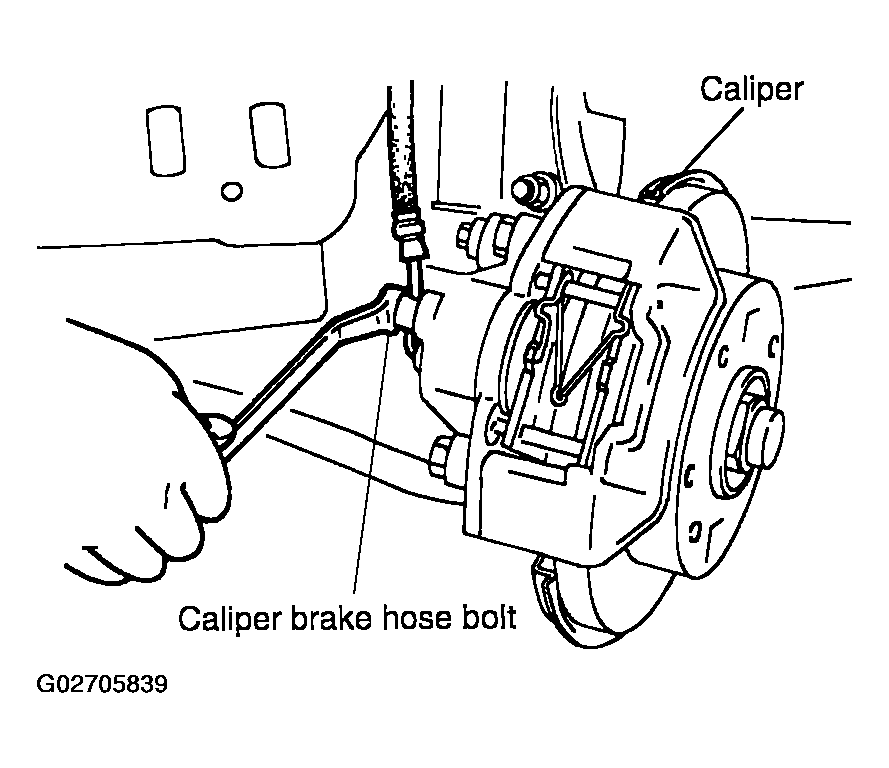

    Fig 1: Removing Brake Hose
    G02705839
  3. Remove the caliper bolts and the caliper.
  4. Remove the anti-squeak caps
