C-1B - Instrumental Cluster and Warning Lamps

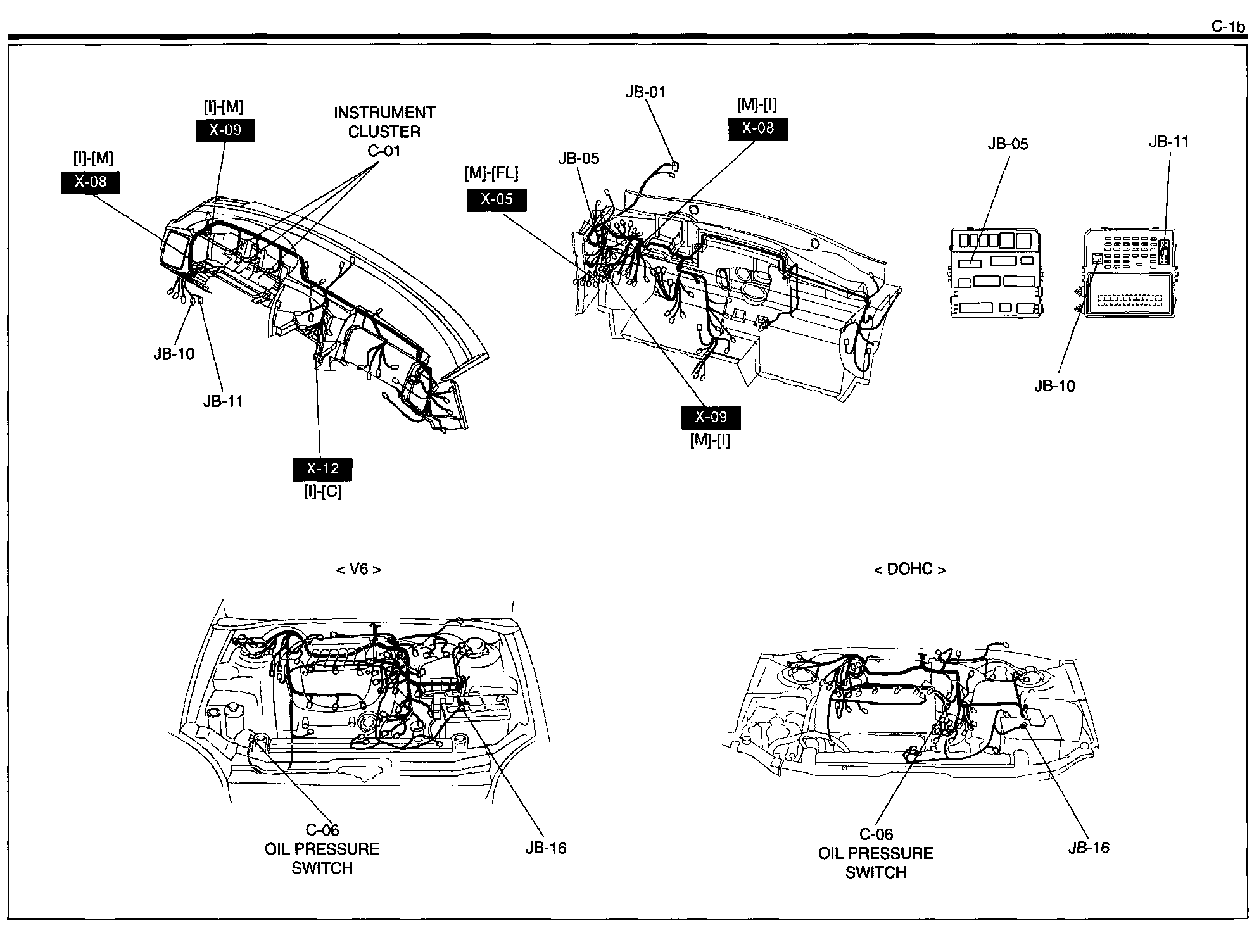

C-1b - Instrument Cluster & Warning Lamp Harness/Connector Symbols:
