Electrical Diagrams

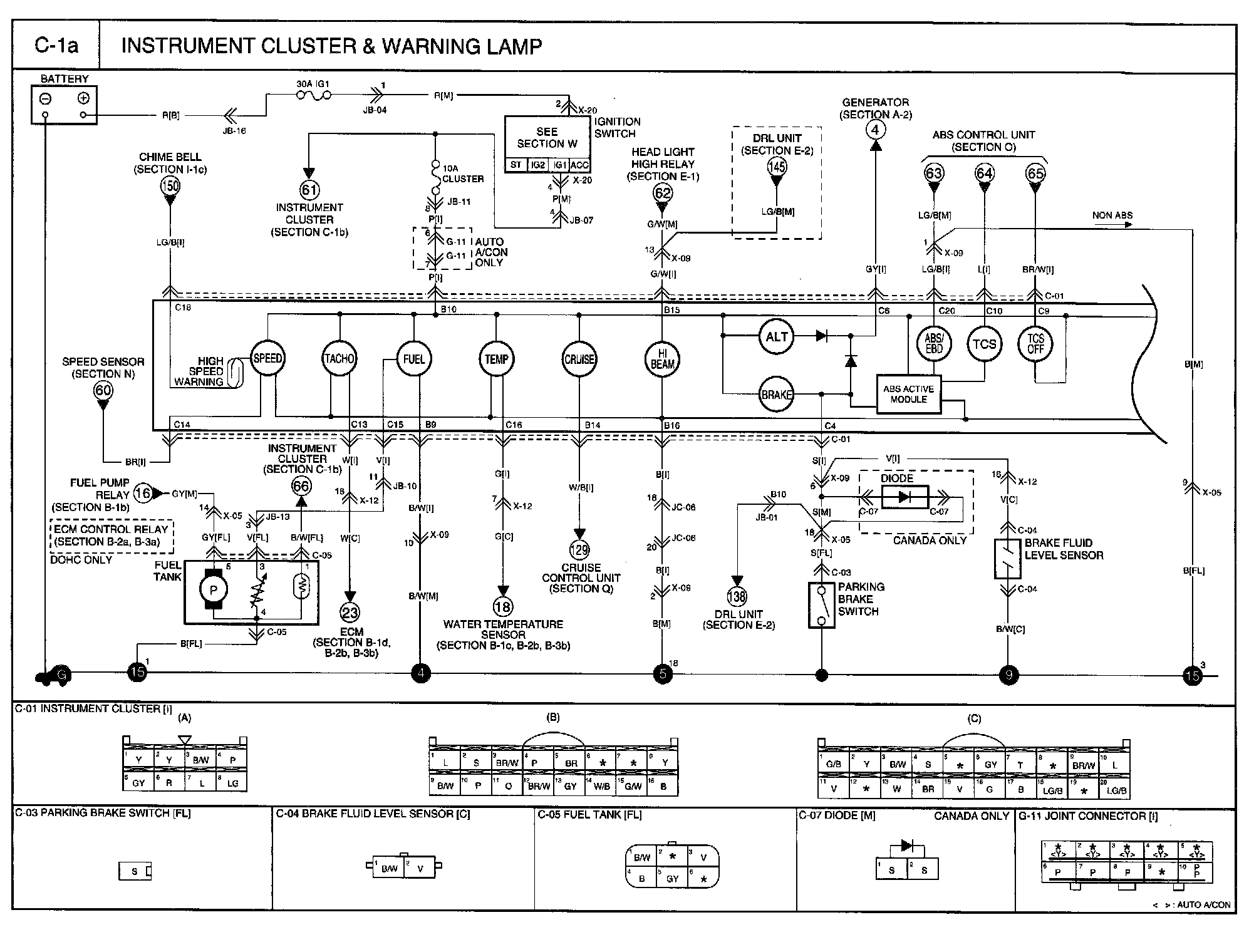

C-1a - Instrument Cluster & Warning Lamp Circuit:

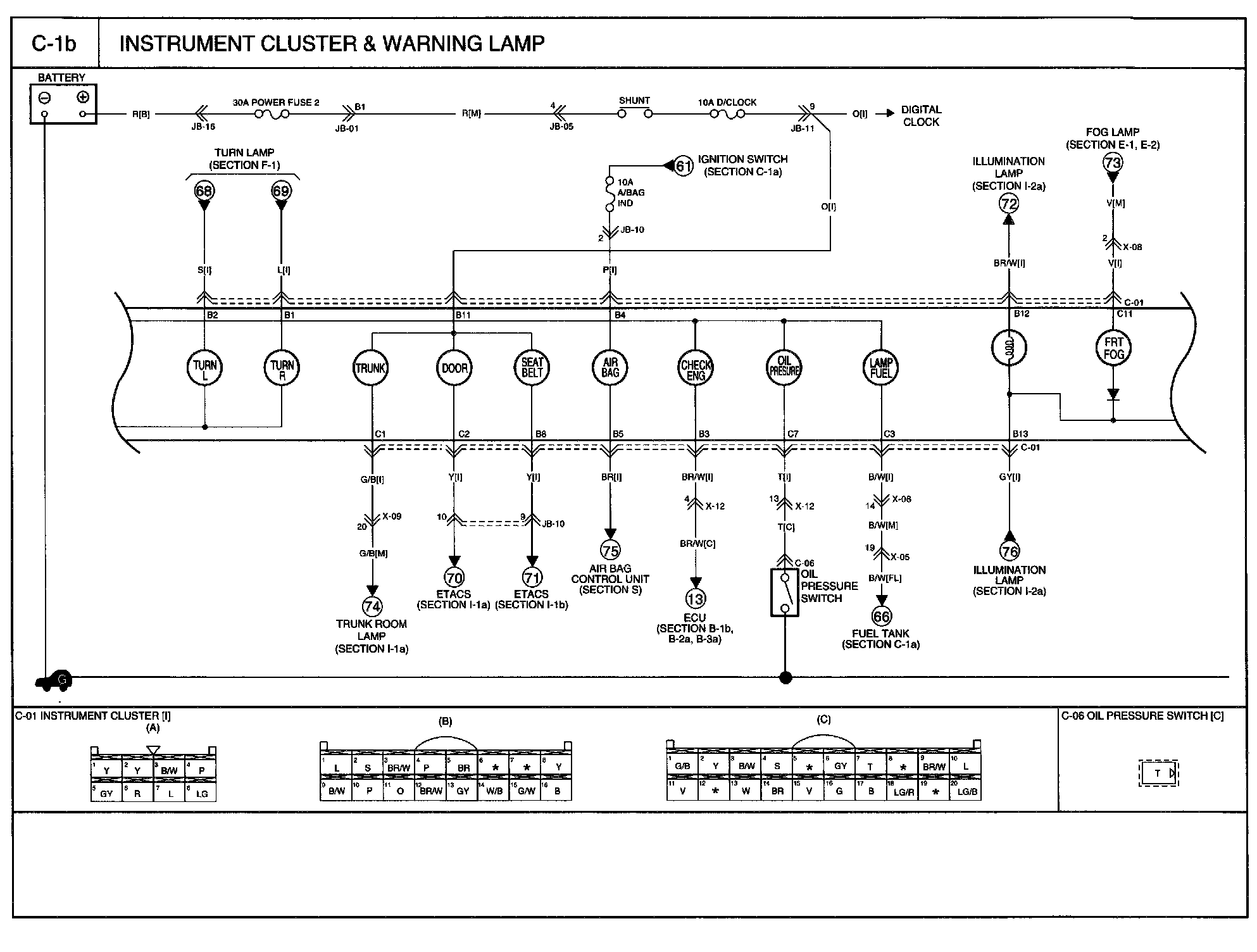

C-1b - Instrument Cluster & Warning Lamp Circuit:

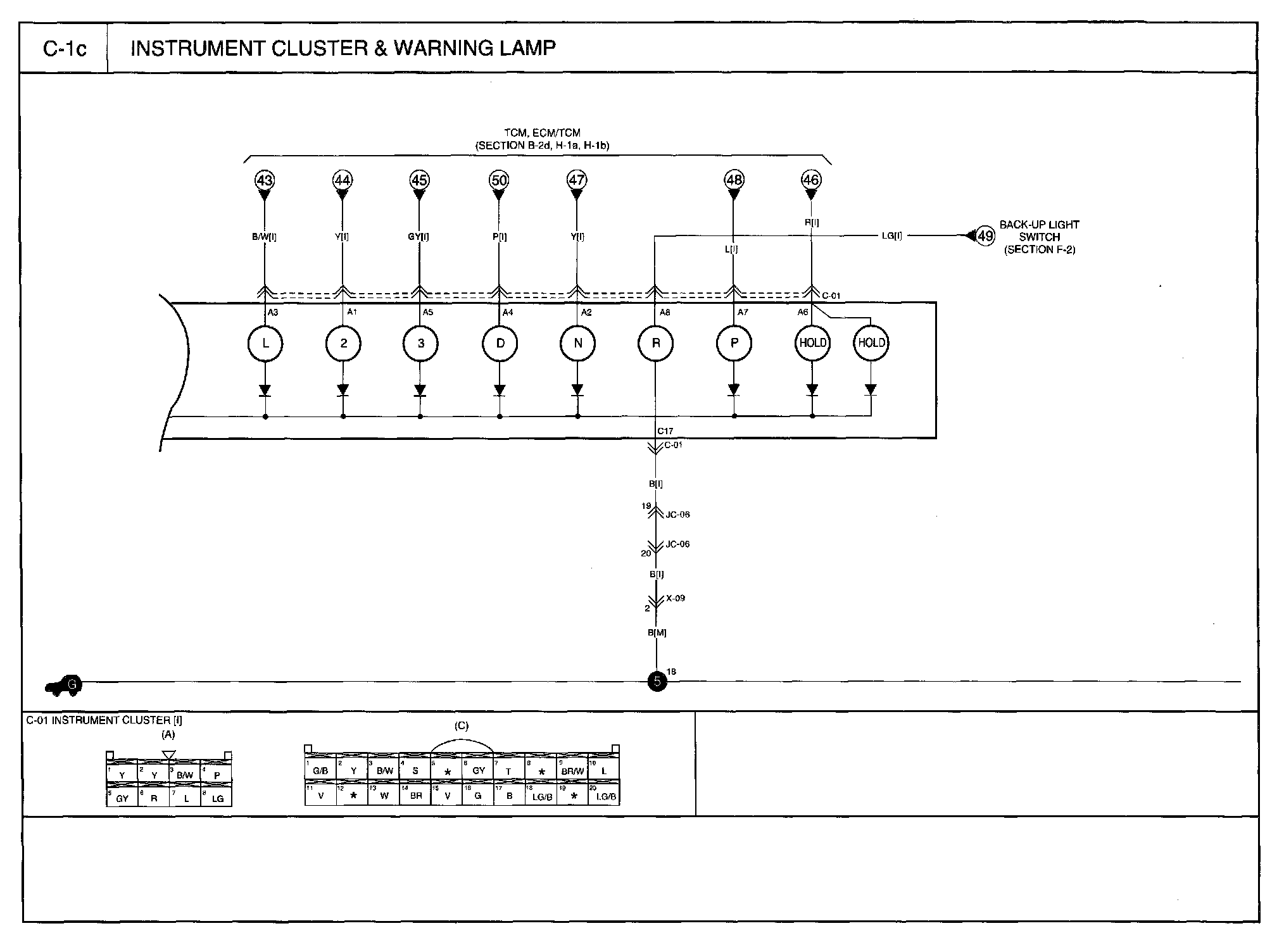

C-1c - Instrument Cluster & Warning Lamp Circuit:
