E-3 - Tail Lamp, License Lamp, Position Lamp, Sunvisor Lamp
E-3 - Tail Lamp, License Lamp, Position Lamp, Sunvisor Lamp

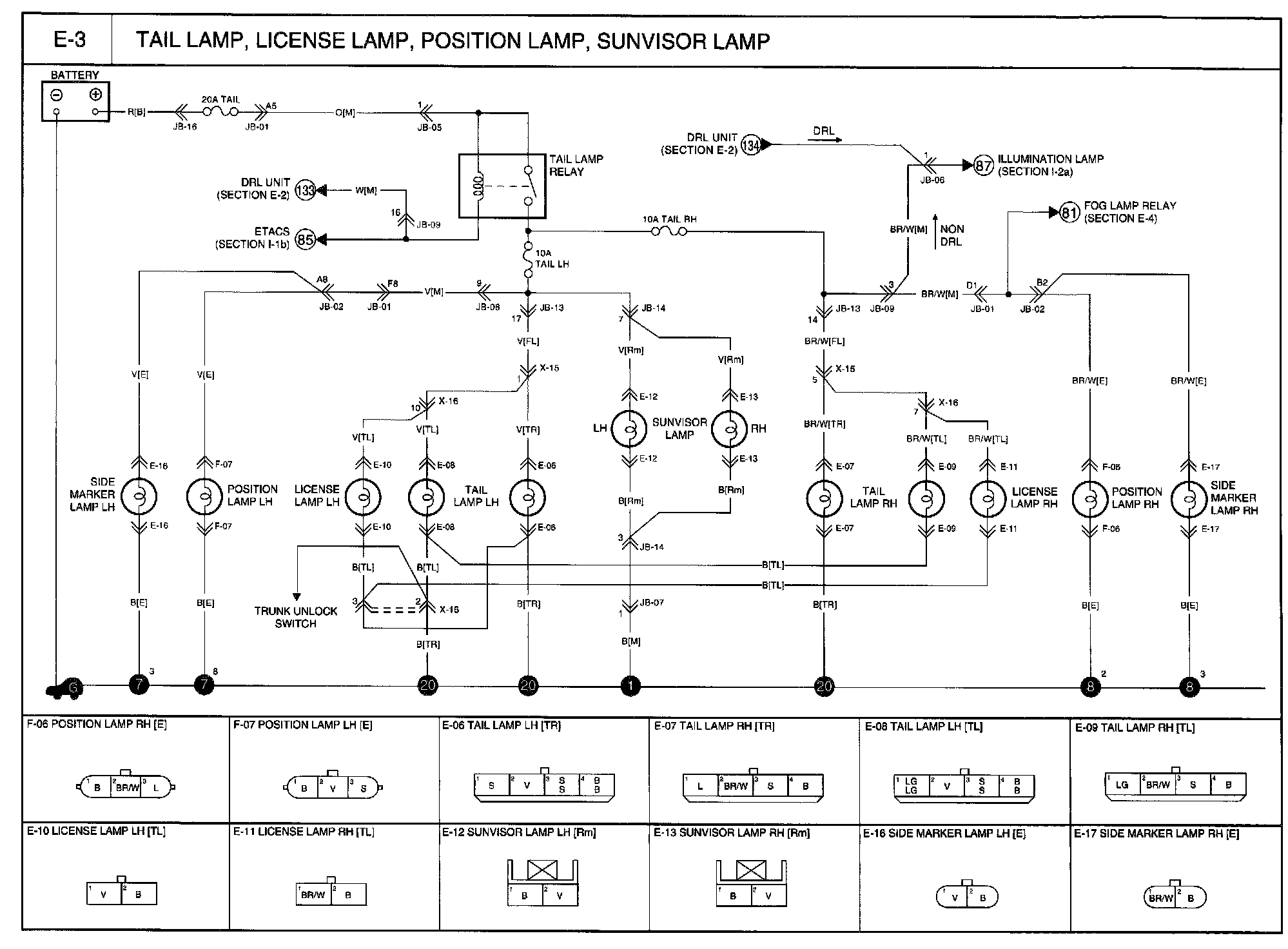

E-3 - Tail Lamp, License Lamp, Position Lamp, Sunvisor Lamp Circuit:
