Home >> Kia >> 2000 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

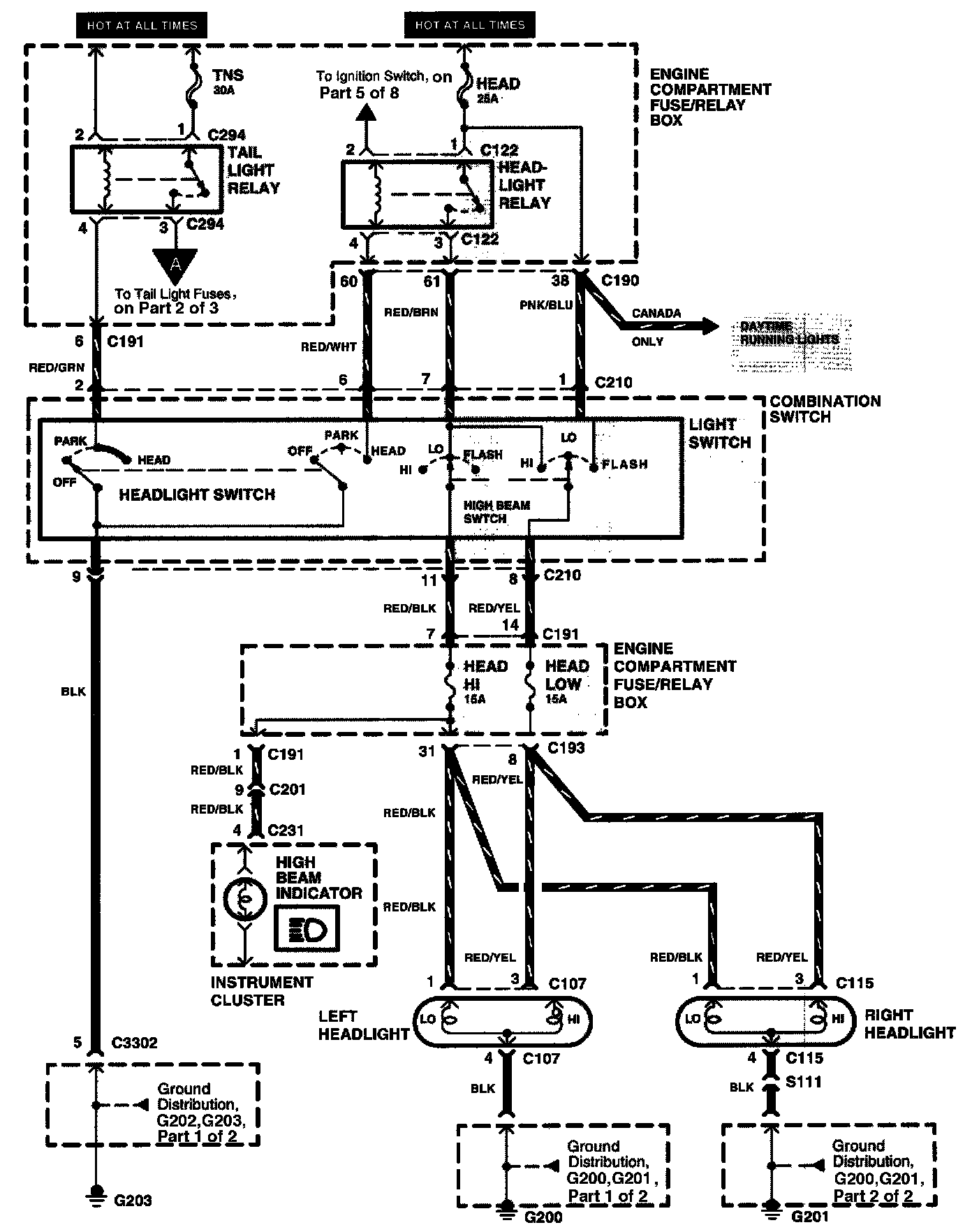

Part 1 Of 3:

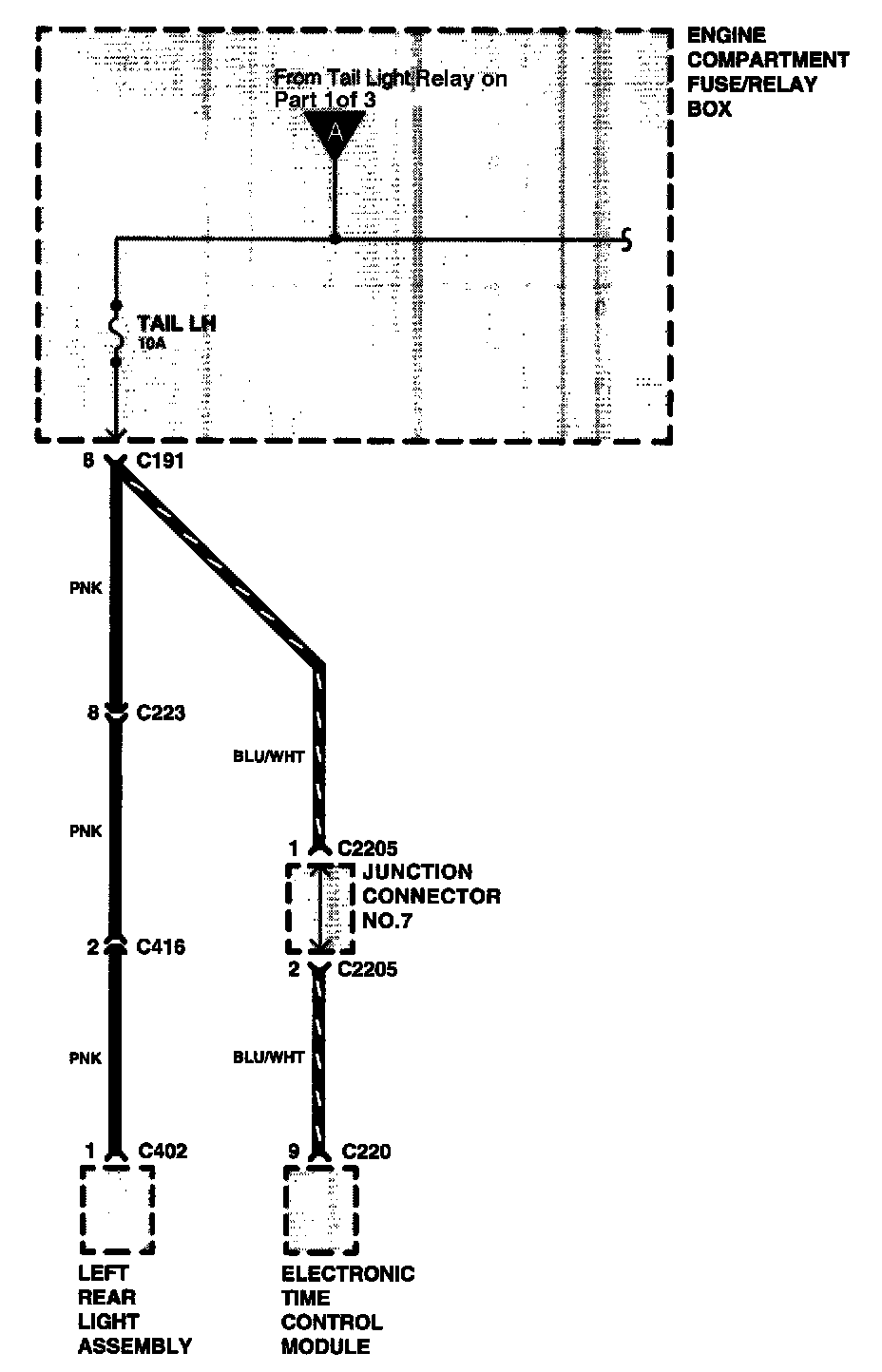

Part 2 Of 3:

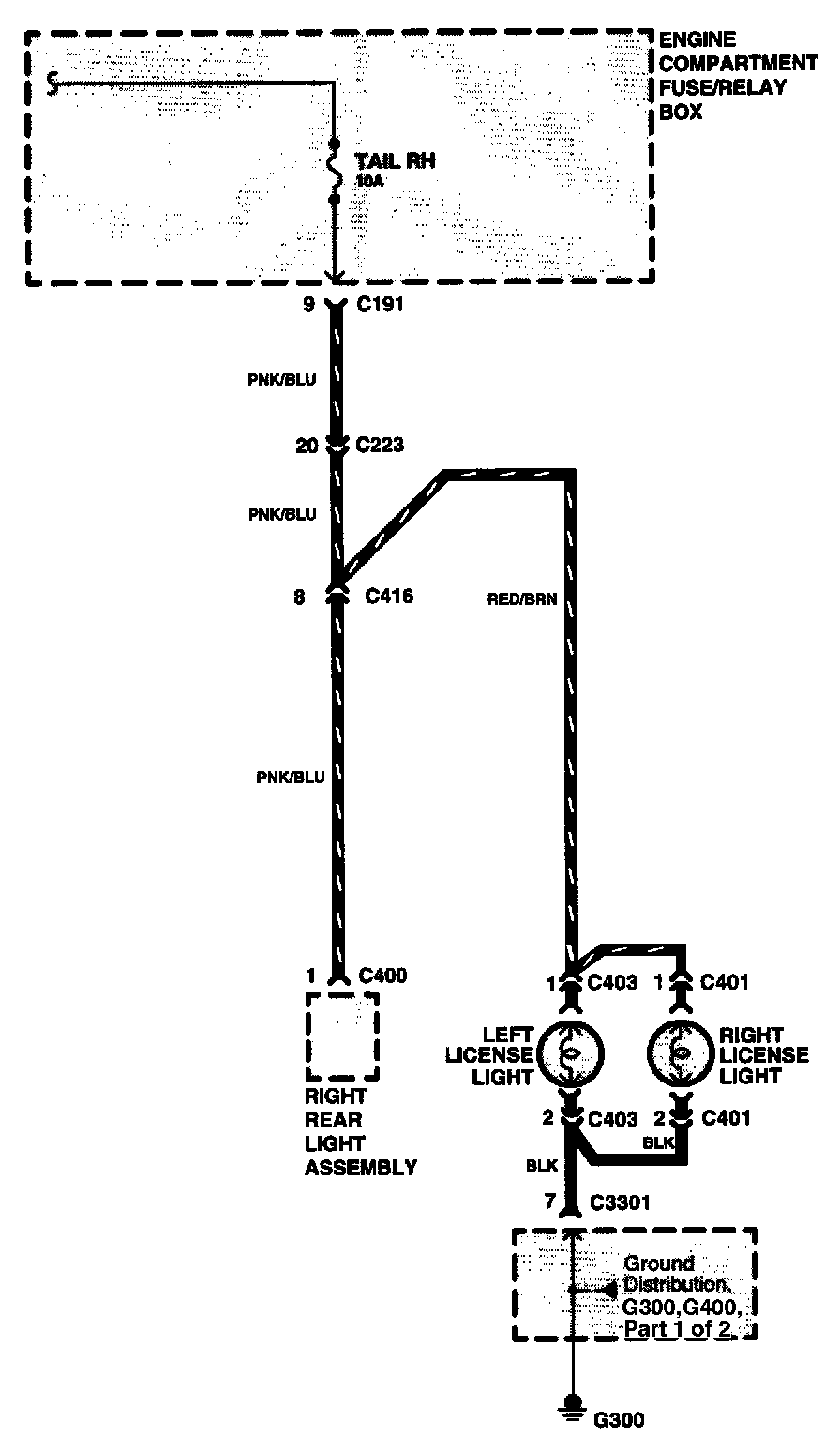

Part 3 Of 3:
