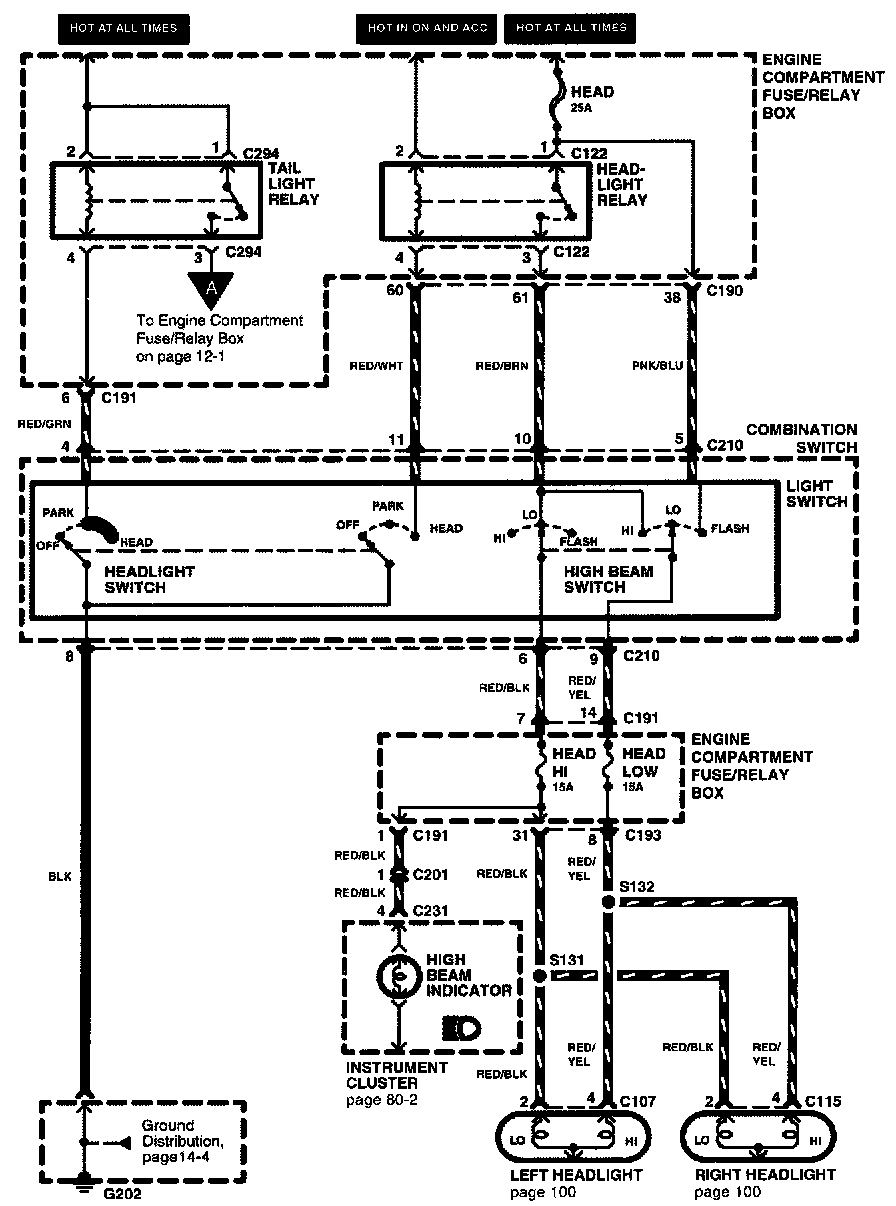

Light Switch Details Schematics




The Light Switch Details schematic shows all the wiring between the light switch and the components connected to the output of the light switch. The Light Switch Details schematic is extremely helpful in locating a short circuit on the output side of the light switch.
