Home >> Kia >> 2000 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Indicators and Gauges Cluster

Indicators and Gauges Cluster

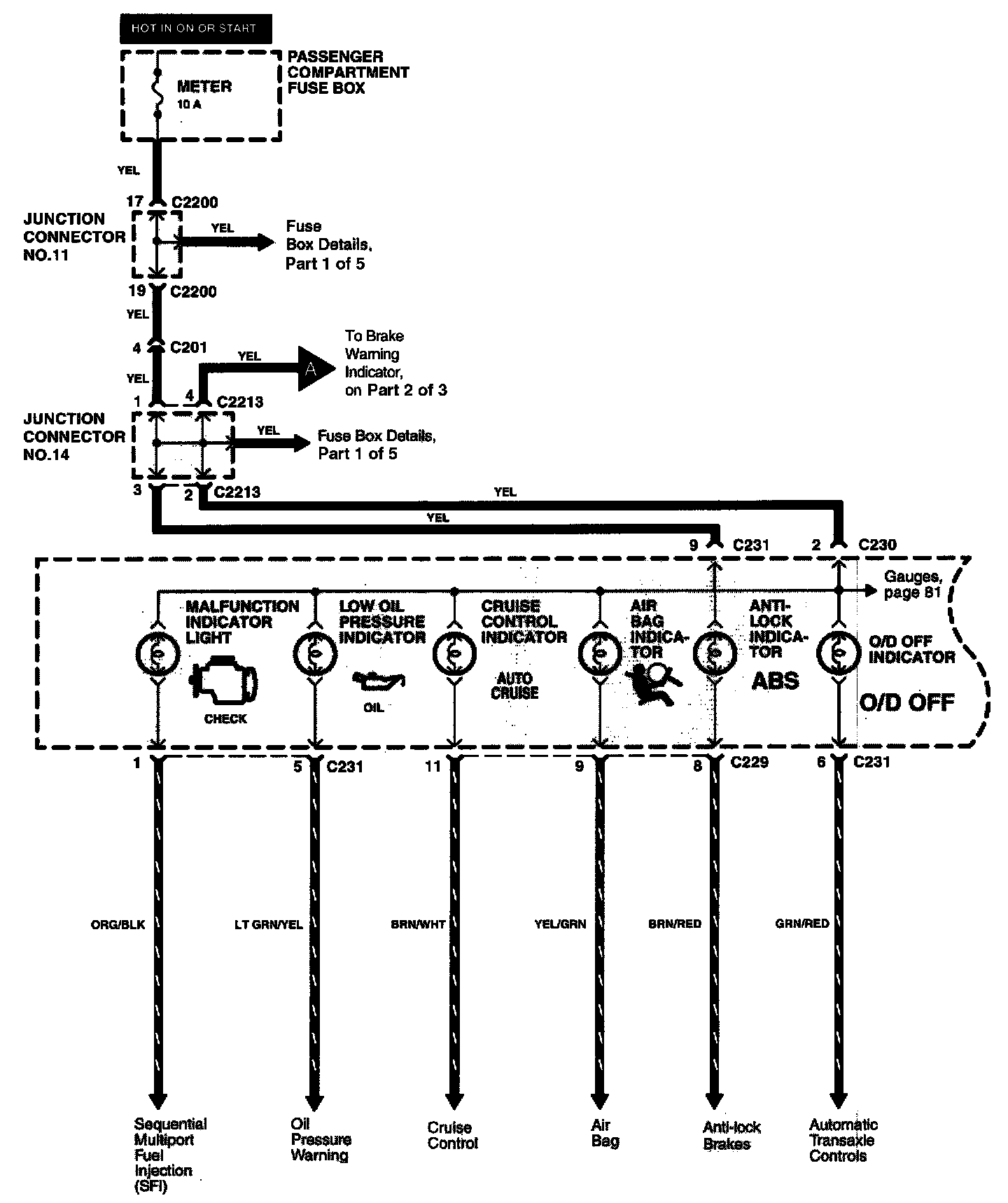

Part 1 Of 3:

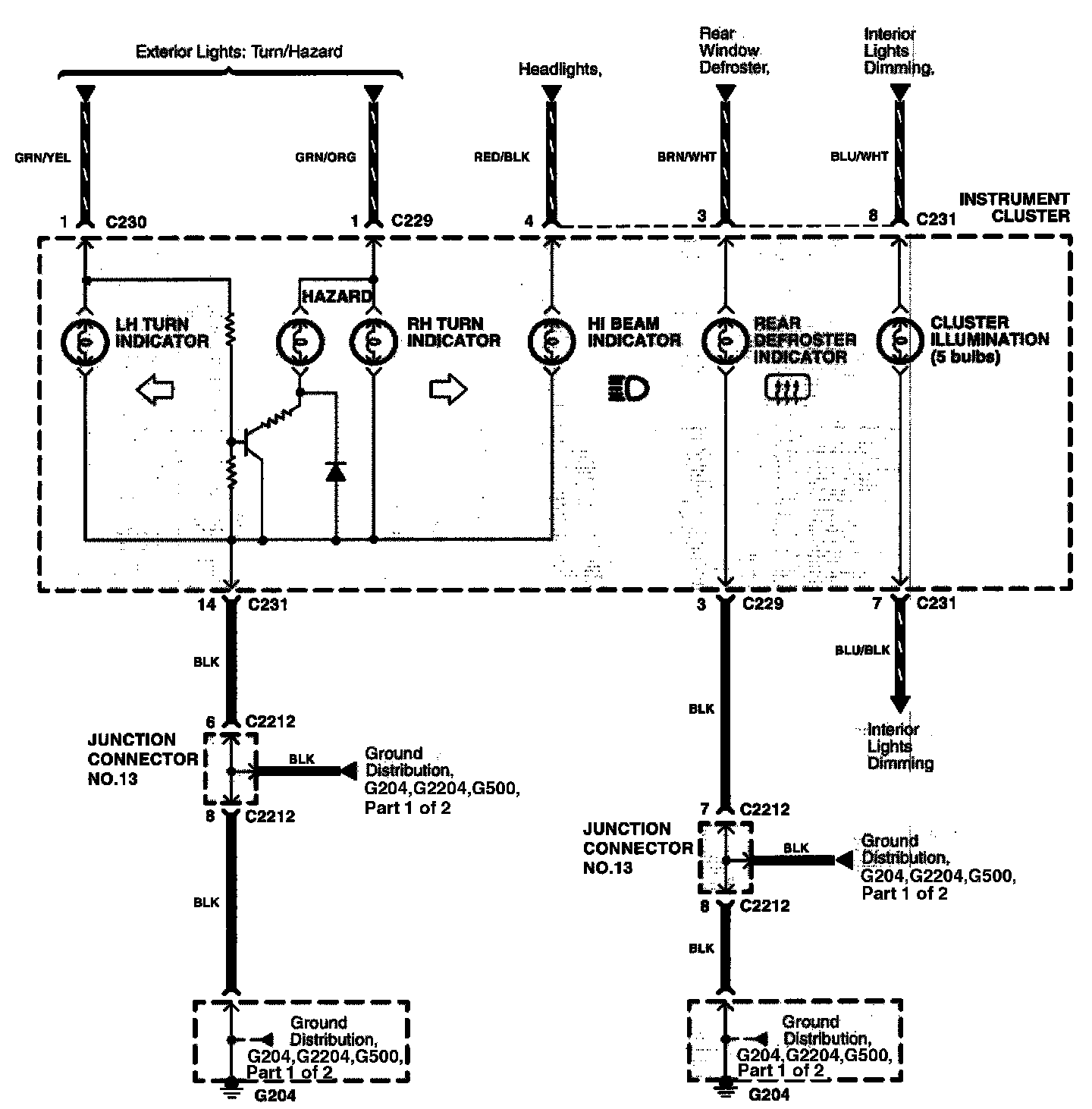

Part 2 Of 3:

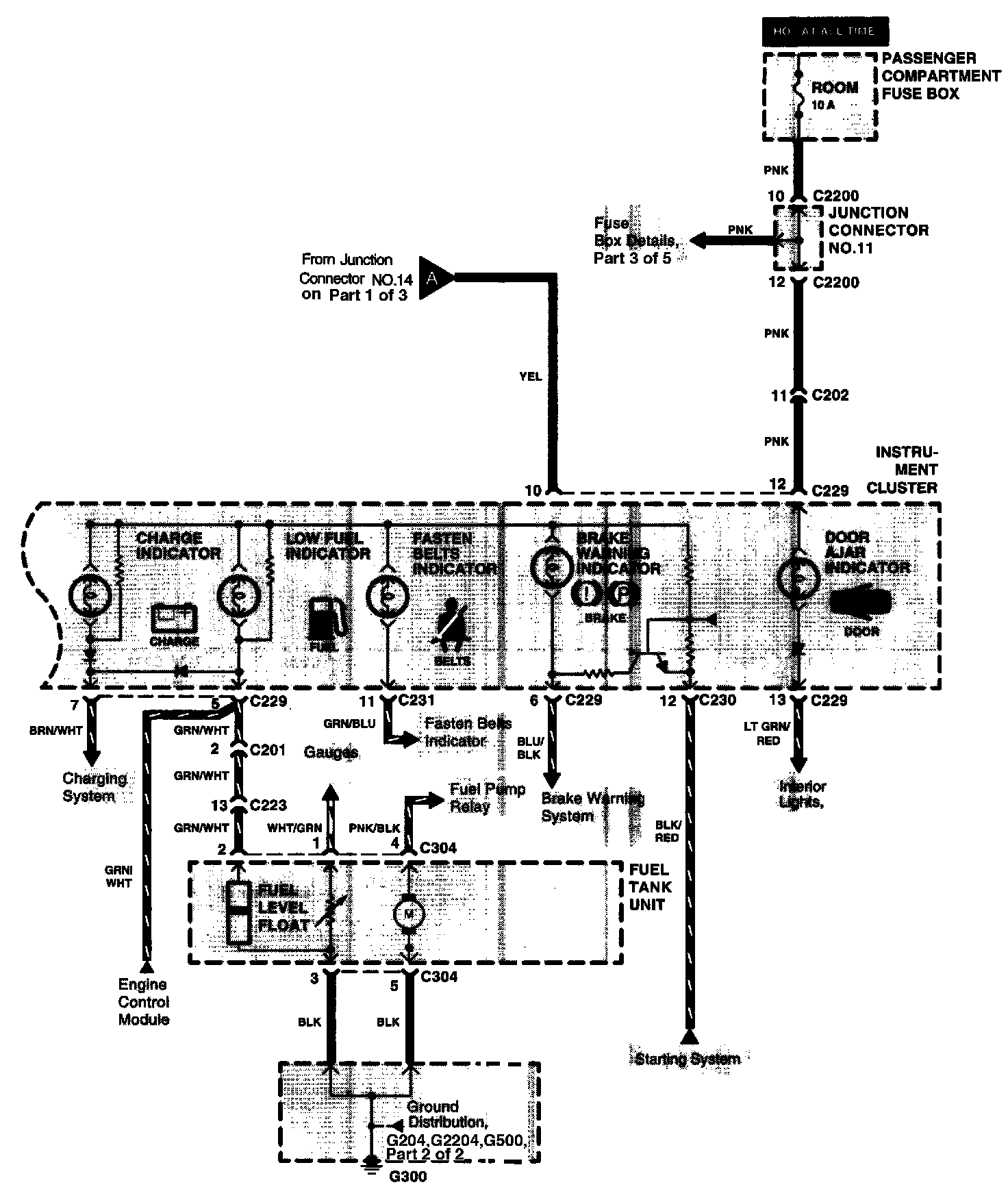

Part 3 Of 3:
