Removal (Sephia & Spectra)

Raise and support vehicle. Remove front wheels. Remove plastic caps. Remove 2 bolts and bushings. Remove caliper and wire aside. Remove spring clip. Remove brake pads. See Fig 1. Measure brake pad thickness. Replace pad if lining thickness is less than .08" (2.0 mm).

NOTE: Excessive runout could be caused by a loose wheel hub bearing.

Prepare to catch any brake fluid. Using flare nut wrench, disconnect brake hose. Remove 2 bolts and supporting plate. Remove caliper. Measure runout at outer braking contact edge of rotor. Maximum runout should be .004" (.10 mm).

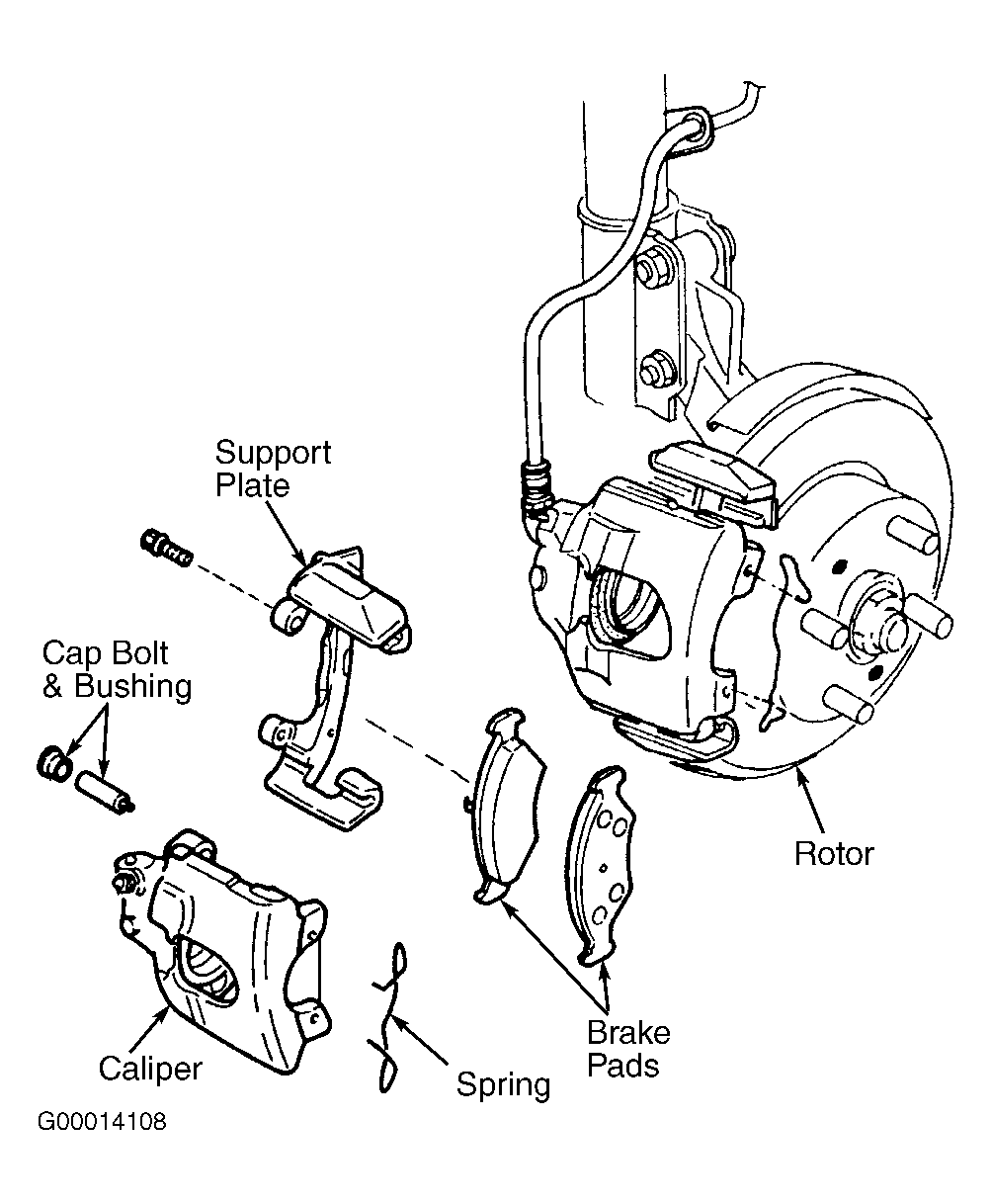

Fig 1: Exploded View Of Front Disc Brakes (Sephia & Spectra Are Shown; Sportage Is Similar)

Courtesy of KIA MOTORS AMERICA, INC.
