Rear Brake Shoes & Wheel Cylinders: Installation

1. To install, reverse removal procedure. Apply brake grease to wheel cylinder and anchor sliding parts, adjuster threads and shoe contact points on backing plate.
2. Install primary and secondary shoes in original positions (secondary shoe is longer). Adjust brake shoes. Bleed air from system.

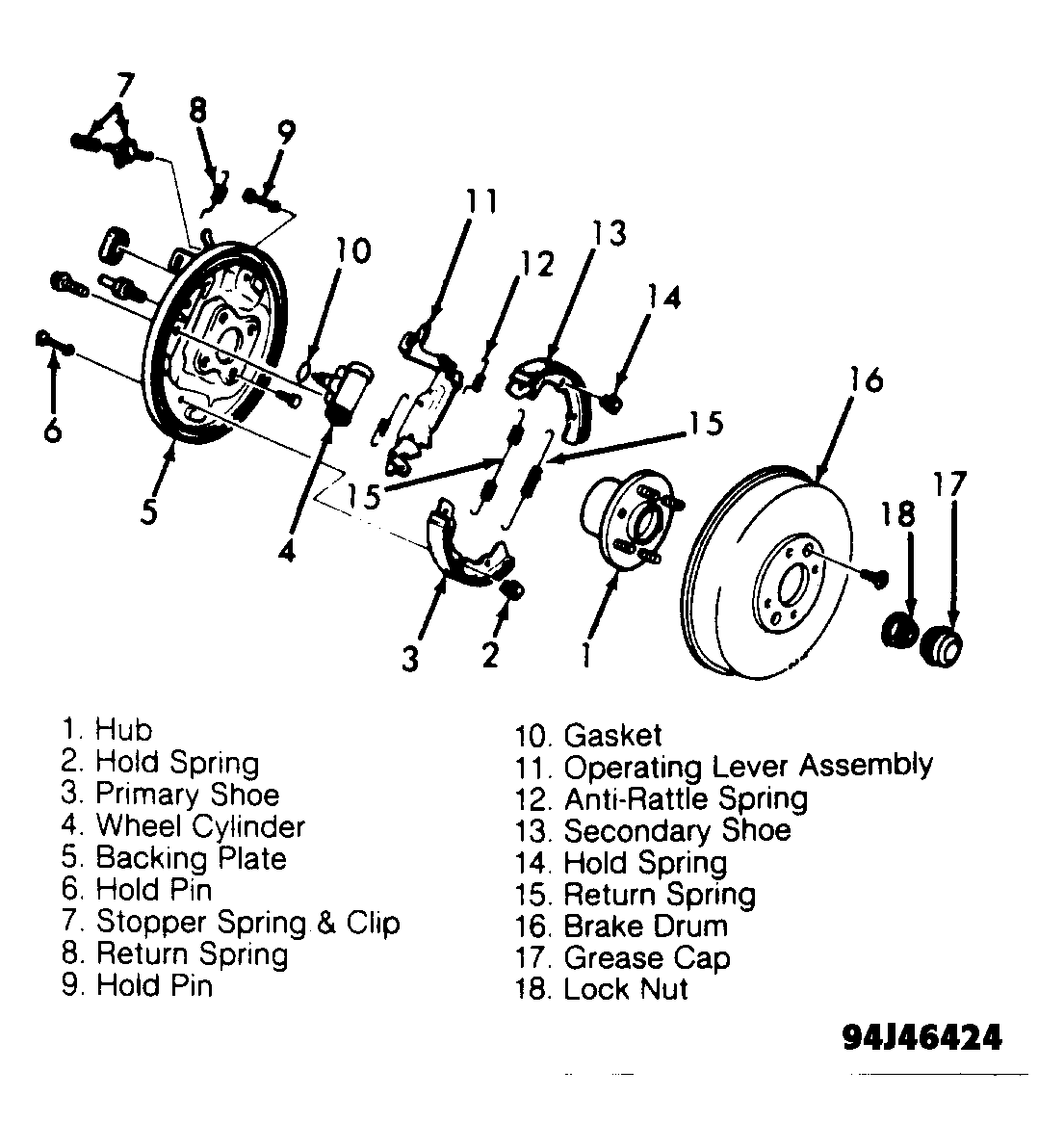

Fig 1: Exploded View Of Rear Drum Brake Assembly

Courtesy of KIA MOTORS AMERICA, INC.
