Parking Brake
- Depress brake pedal several times while vehicle is moving in reverse to ensure rear brakes are properly adjusted. Pull parking brake lever with a force of 22 lbs. (10 kg). If stroke is 6-8 notches, parking brake is properly adjusted.

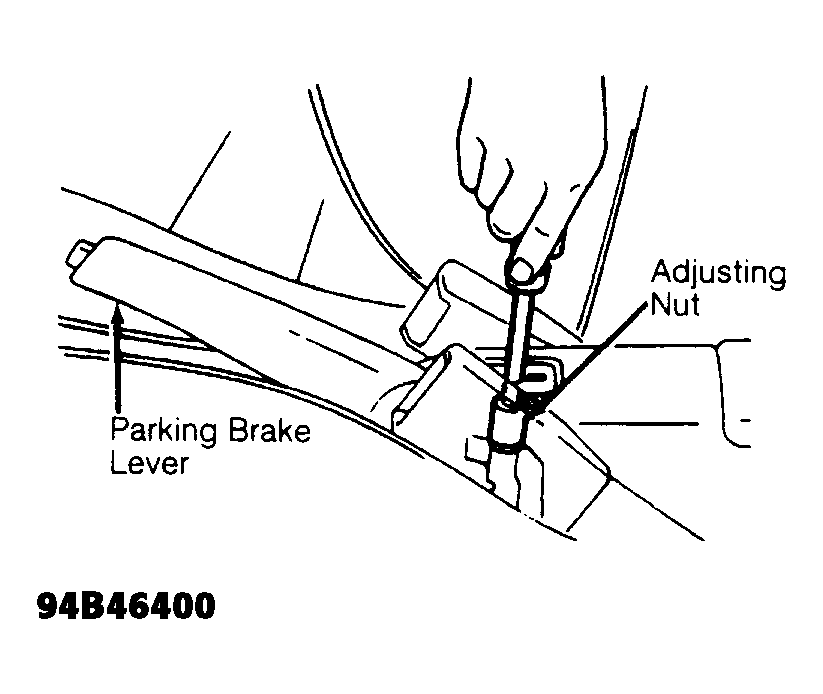

- If stroke is not 6-8 notches, raise and support rear of vehicle. Release parking brake lever. Remove parking brake lever cover. Remove adjusting nut clip. Rotate adjusting nut until stroke is 6-8 notches. See Fig 1
.
- Operate parking brake several times and ensure rear brakes do not drag. Ensure parking brake warning light illuminates when brake lever is pulled one notch.
Courtesy of KIA MOTORS AMERICA, INC.
