Brake Pedal To Floor Clearance

  1. Depress brake pedal with a force of 132 lbs. (59 kg). Measure distance between upper center pedal pad-to-carpet. See Fig 1 . Clearance should be 2.76" (70.1 mm).
  2. If clearance is not as specified, check for air in brake hydraulic system, rear brake automatic adjuster malfunction or worn brake shoes/pads. Replace components as necessary.

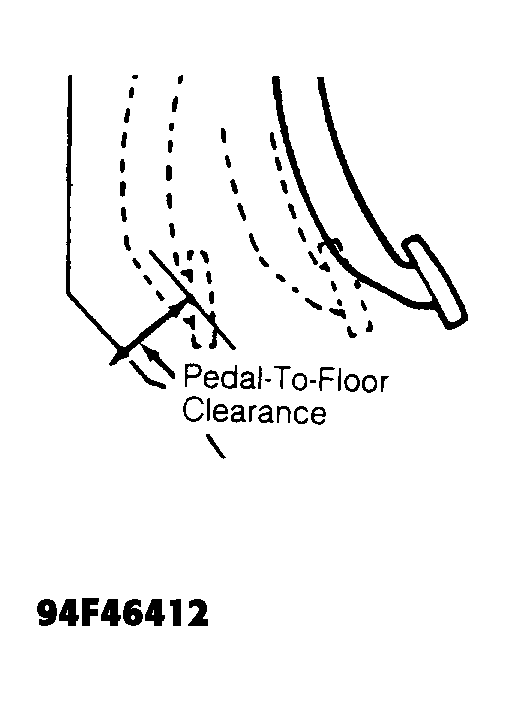

Fig 1: Checking Brake Pedal-To-Floor Clearance
G94F46412Courtesy of KIA MOTORS AMERICA, INC.
