Brake Pedal Free Play

  1. With engine off, depress pedal a few times to eliminate vacuum. Depress brake pedal by hand and check pedal free play. Free play should be .16-.28" (4-7 mm). If free play is as specified, no adjustment is necessary.

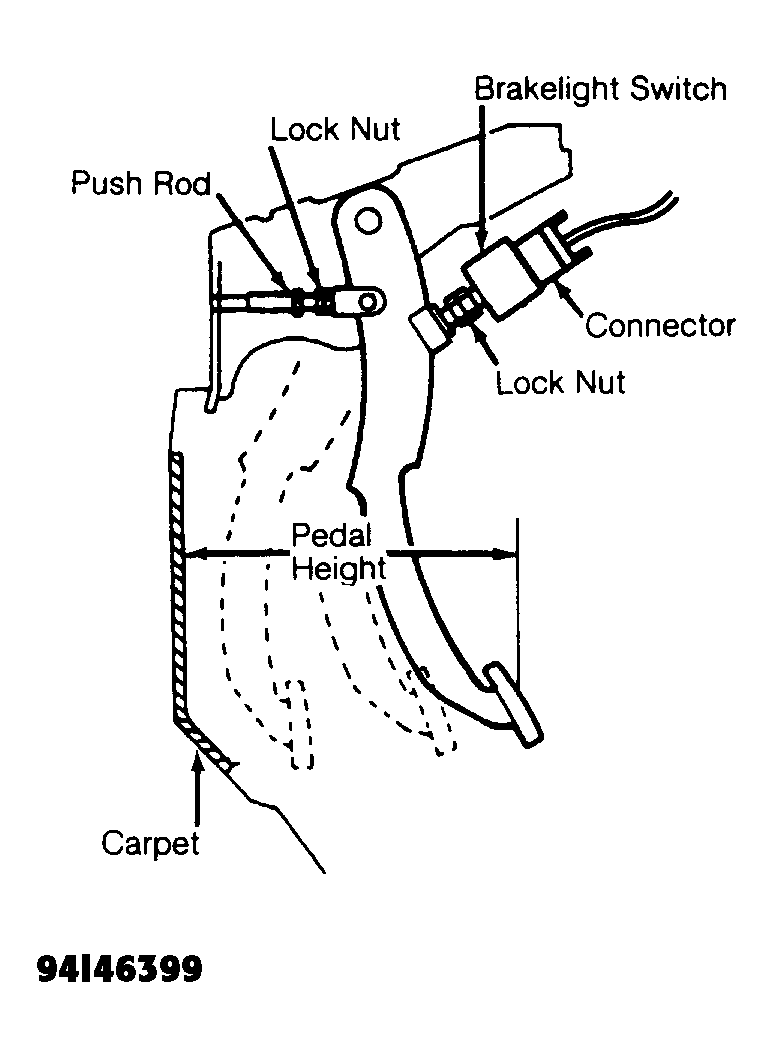

  2. If free play is not as specified, loosen push rod lock nut. See Figure . Rotate push rod until correct free play is obtained. Tighten push rod lock nut.
