Torque Specifications - Transmission Oil Cooler And Heater
WARNING: This page is about a different car, the 2025 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

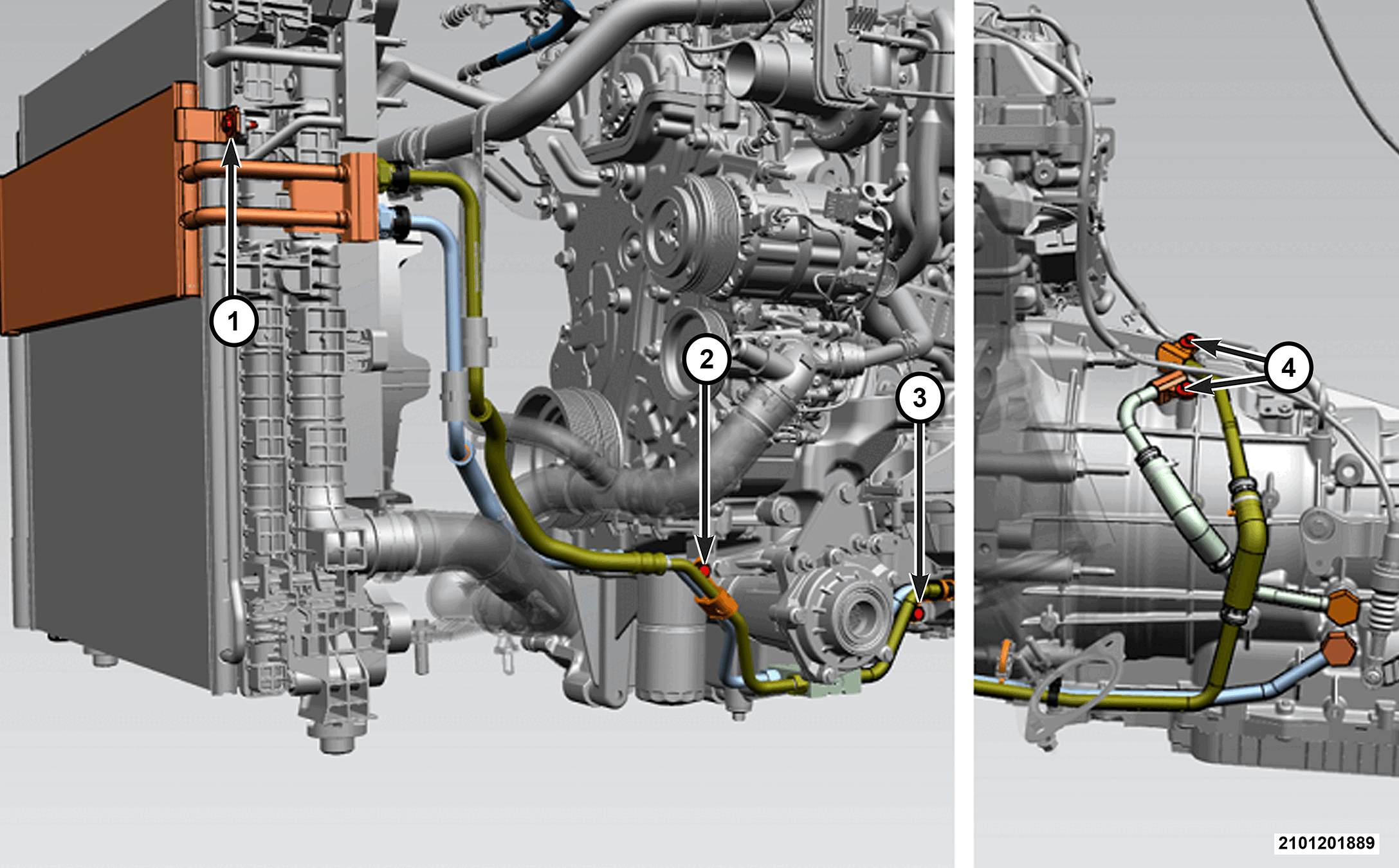

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Transmission Oil Cooler Bolt | - | Tighten Securely |
| 2 | Transmission Oil Cooler Line Bracket to Front Axle Disconnect Bracket Bolt | 30 N. m (22 Ft. Lbs.) | - |
| 3 | Transmission Oil Cooler Line Bracket To Oil Pan Bolt | 30 N. m (22 Ft. Lbs.) | - |
| 4 | Transmission Oil Cooler Line To Transmission Bolts | 11 N.m (8 Ft. Lbs.) | - |
