Torque Specifications - Transmission Mount
WARNING: This page is about a different car, the 2025 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

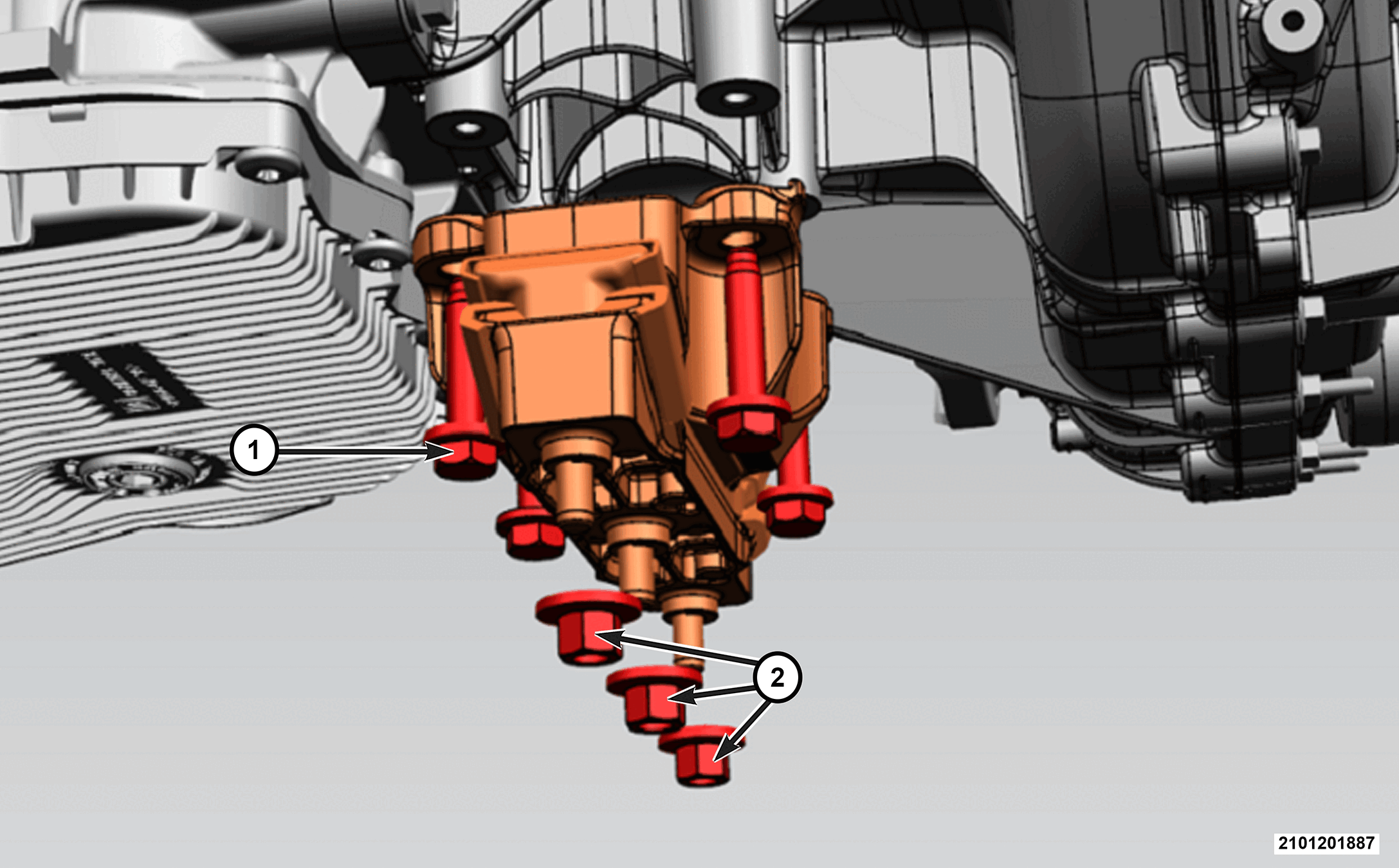

| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Transmission Isolator to Transmission Bolts |
63 N.m (46 Ft. Lbs.) |
- |
| 2 |
Transmission Isolator to Crossmember Nuts |
63 N.m (46 Ft. Lbs.) |
- |
