Torque Specifications - Manual Park Release
WARNING: This page is about a different car, the 2025 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

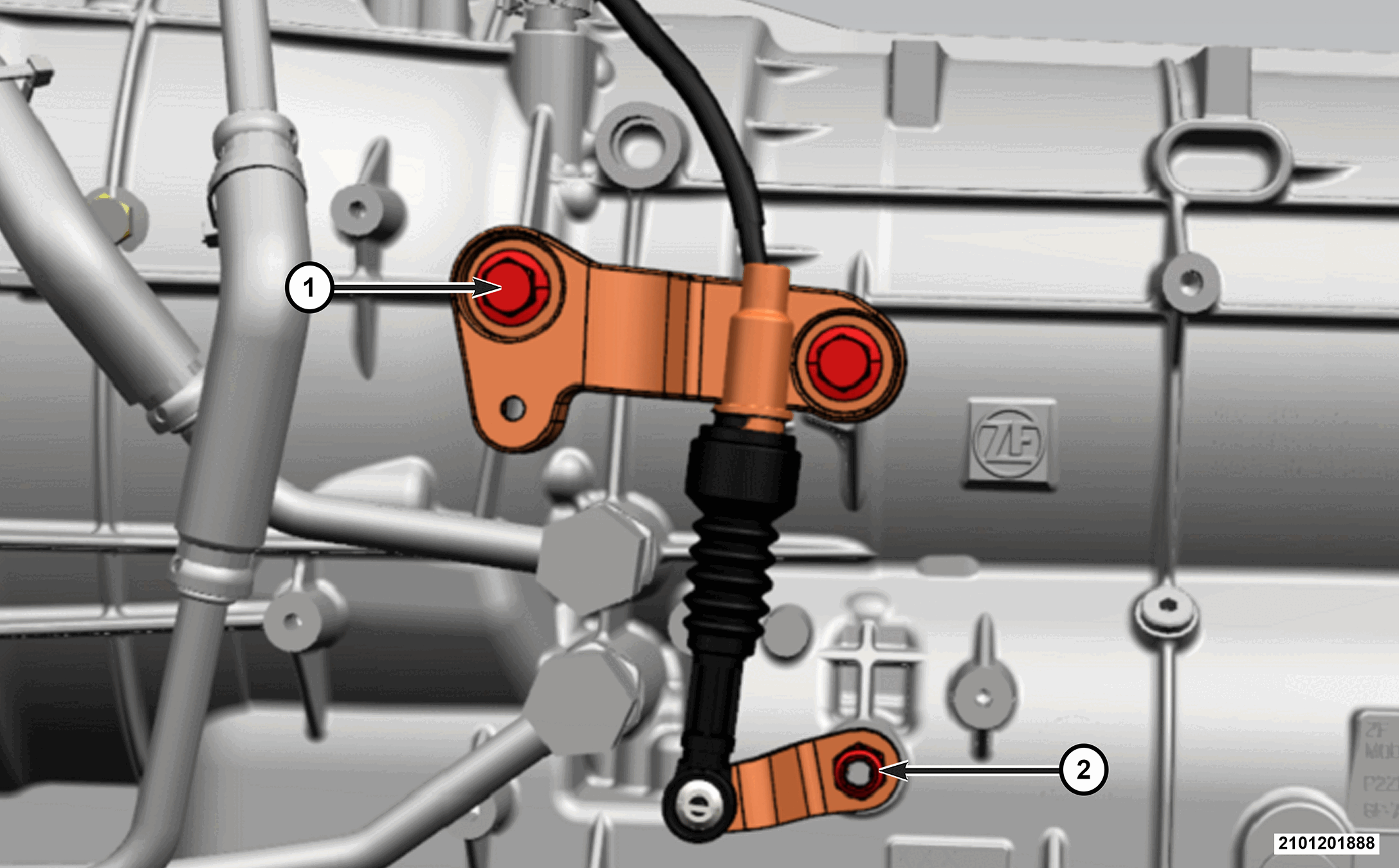

| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Manual Park Release (MPR) Cable Bracket Bolts |
20 N. m (15 Ft. Lbs.) |
- |
| 2 |
Manual Park Release (MPR) Lever Shaft Nut (at Transmission) |
20 N. m (15 Ft. Lbs.) |
- |
| Not Shown |
Manual Park Release (MPR) Lever Nuts (Interior) |
9 N. m (80 In. Lbs.) |
- |
