E-Save Switch

REMOVAL

1. Remove the headlamp switch assembly. Refer to SWITCH, HEADLAMP, REMOVAL AND INSTALLATION .

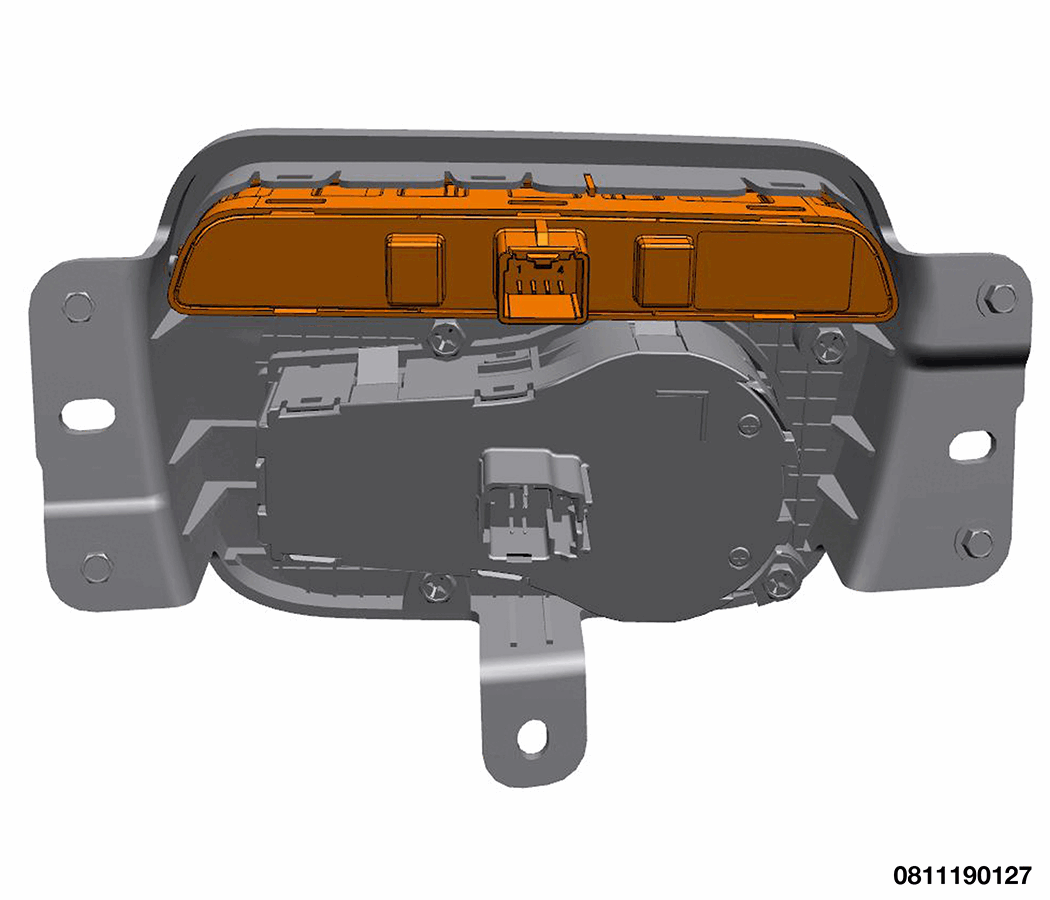

2. Release the clips on the back of the headlamp switch assembly and remove the E-Save switch.

   Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
