Charge Air Cooler Outlet Tube

REMOVAL

1. Remove the engine cover.
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

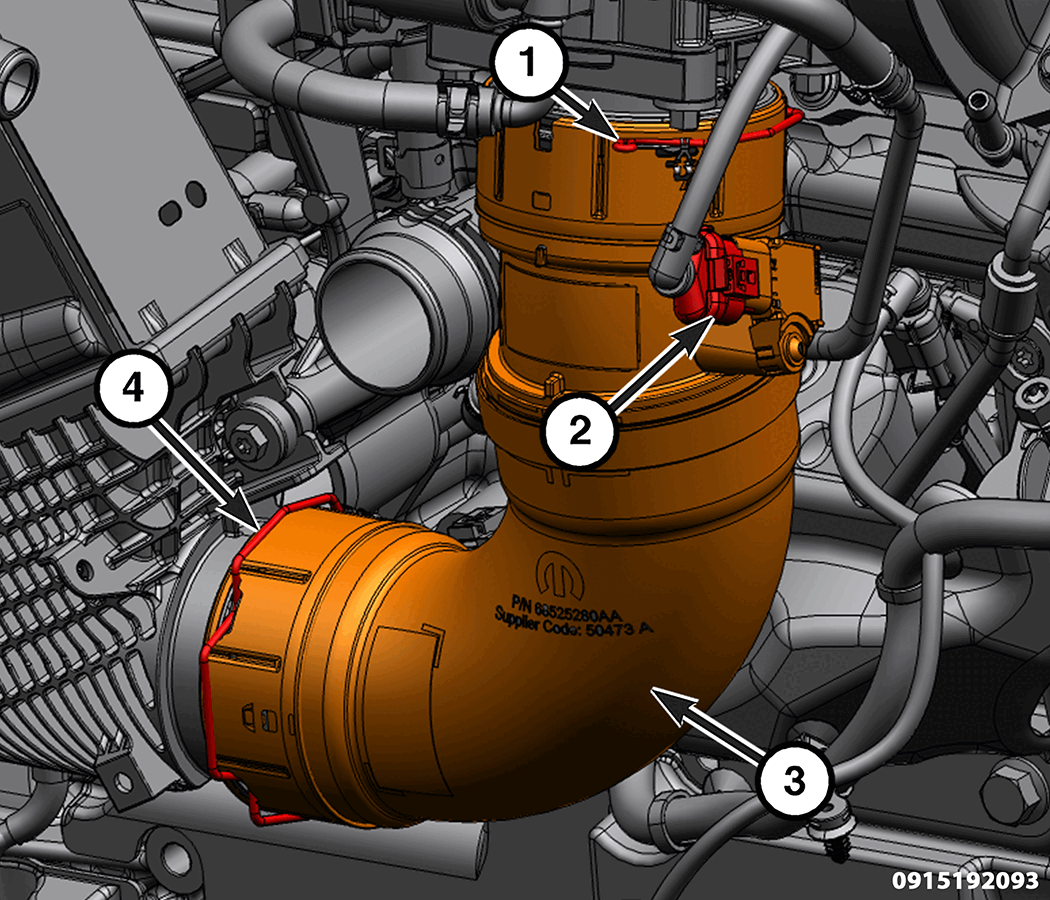

   Courtesy of CHRYSLER GROUP, LLC

   1 - Charge Air Cooler Outlet Tube Upper Retainer Clip

   2 - Inlet Pressure Sensor Wire Harness Connector

   3 - Charge Air Cooler Outlet Tube

   4 - Charge Air Cooler Outlet Tube Lower Retainer Clip

3. Disconnect the TMAP wire harness connector.
4. Release the retainer clips and remove the Charge Air Cooler (CAC) outlet tube.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
