Fuel System: Notes
DESCRIPTION

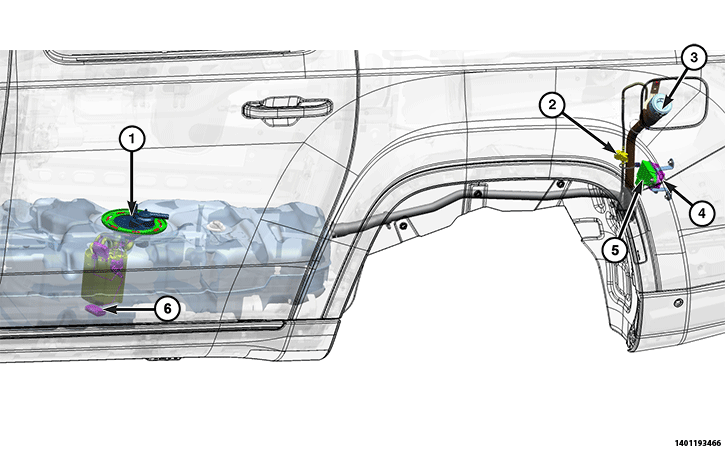

The fuel delivery system is made up of the following:
| 1 - Low Pressure Fuel Pump |
| 2 -Fuel Tank Pressure Sensor |
| 3 - Cap-less Fuel Filler Tube |
| 4 - Fuel Pump Control Module 2 (High Output (HO) Only) |
| 5 - Fuel Pump Control Module 1 (Both Standard Output (SO) and High Output) |
| 6 - Fuel Level Sensor |

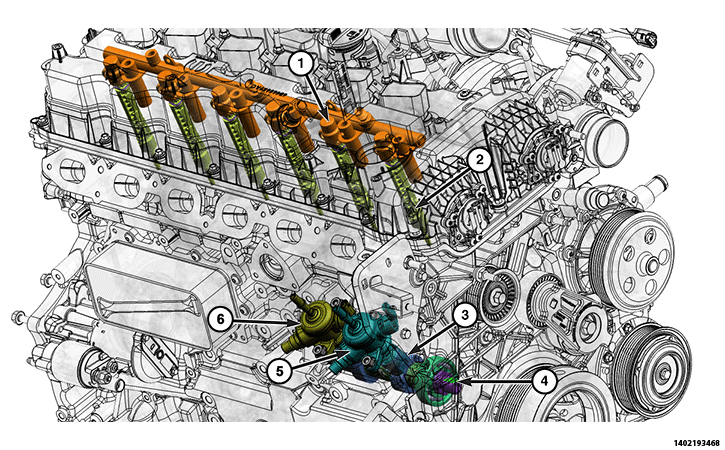

| 1 - Fuel Rail |
| 2 - Fuel Injector |
| 3 - High Pressure Fuel Pump Tappet |
| 4 - High Pressure Fuel Pump Camshaft |
| 5 - High Pressure Fuel Pump 1 (HO Only) |
| 6 - High Pressure Fuel Pump 2 (Both SO and HO) |
