Repair Procedure For CHMSL (3RD Brake Light)

Parts Required:

• Mopar Glass Sealer

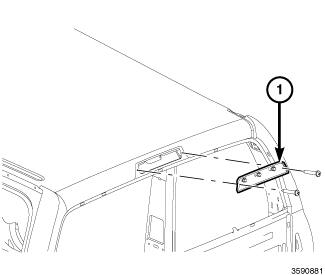

1. Remove the CHMSL (Center High Mounted Stop Lamp) assembly. Refer to LAMP, CENTER HIGH MOUNTED STOP, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   Courtesy of CHRYSLER GROUP, LLC

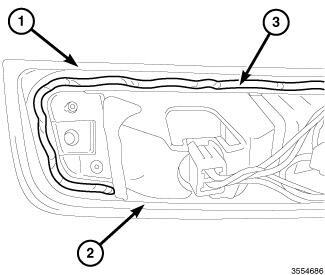

2. Apply 1/8 inch bead of Heavy Bodied Sealer (3) around the lamp (1) on the foam gasket material (2), leaving no gaps.
3. Install the CHMSL assembly. Refer to LAMP, CENTER HIGH MOUNTED STOP, REMOVAL AND INSTALLATION .
4. Remove any excess sealer that squeezes out onto the painted surface or exterior lamp assembly.
