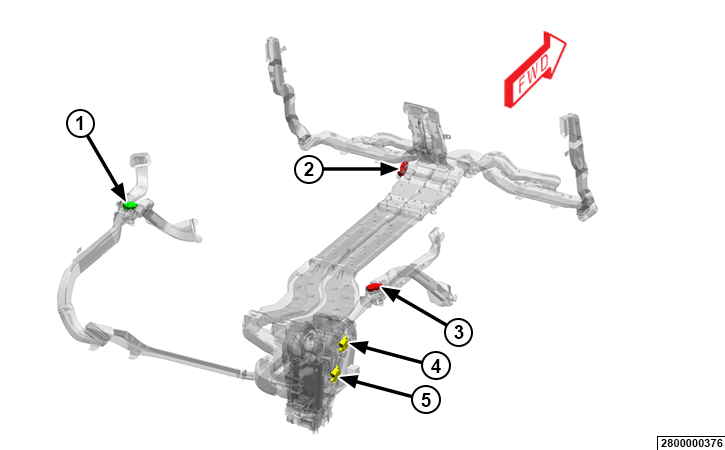

Rear HVAC Actuators
| CALL OUT | DESCRIPTION | ASSOCIATED DTCs |
|---|---|---|
| 1 | 3rd Row Left Mode Door Actuator (LIN) | B105A codes |
| 2 | 2nd Row Mode Door Actuator (LIN) | B103B codes |
| 3 | 3rd Row Right Mode Door Actuator (LIN) | B1059 codes |
| 4 | Rear Right Blend Door Actuator | B1053 codes |
| 5 | Rear Left Blend Door Actuator | B1052 codes |
| CALL OUT | DESCRIPTION |
|---|---|
| 1 | Recirc Door Actuator |
| 2 | Front Right Blend Door Actuator |
| 3 | Front Left Blend Door Actuator |
| 4 | Front Mode Door Actuator |
| 5 | HVAC Module |
| 6 | 2nd Row Mode Door Actuator |
| 7 | 3rd Row Right Mode Door Actuator |
| 8 | 3rd Row Left Mode Door Actuator |
| 9 | Rear Right Blend Door Actuator |
| 10 | Rear Left Blend Door Actuator |
| 11 | Rear HVAC Module |
