Valve Timing Verification

SECONDARY TIMING CHAIN VERIFICATION

Correct timing is critical for the NON free-wheeling designed engine. Engine timing can be verified by using the following procedures:

1. Remove the timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION  .
2. Remove the spark plugs. Refer to SPARK PLUG, REMOVAL AND INSTALLATION .
3. Place cylinder No. 1 at Top Dead Center (TDC).
   NOTE:

   DO NOT USE THE GREEN REFERENCE MARK ON THE INTAKE AND EXHAUST PHASER TO TIME THE ENGINE

   NOTE:

   The green line on the intake phaser is only used as a reference to where the intake phaser timing mark is located. The green line on the exhaust phaser is only used as a reference to where the exhaust phaser timing mark is located.

4. Verify that the intake phaser timing mark and the exhaust phaser timing mark alignment with dark colored chain links.

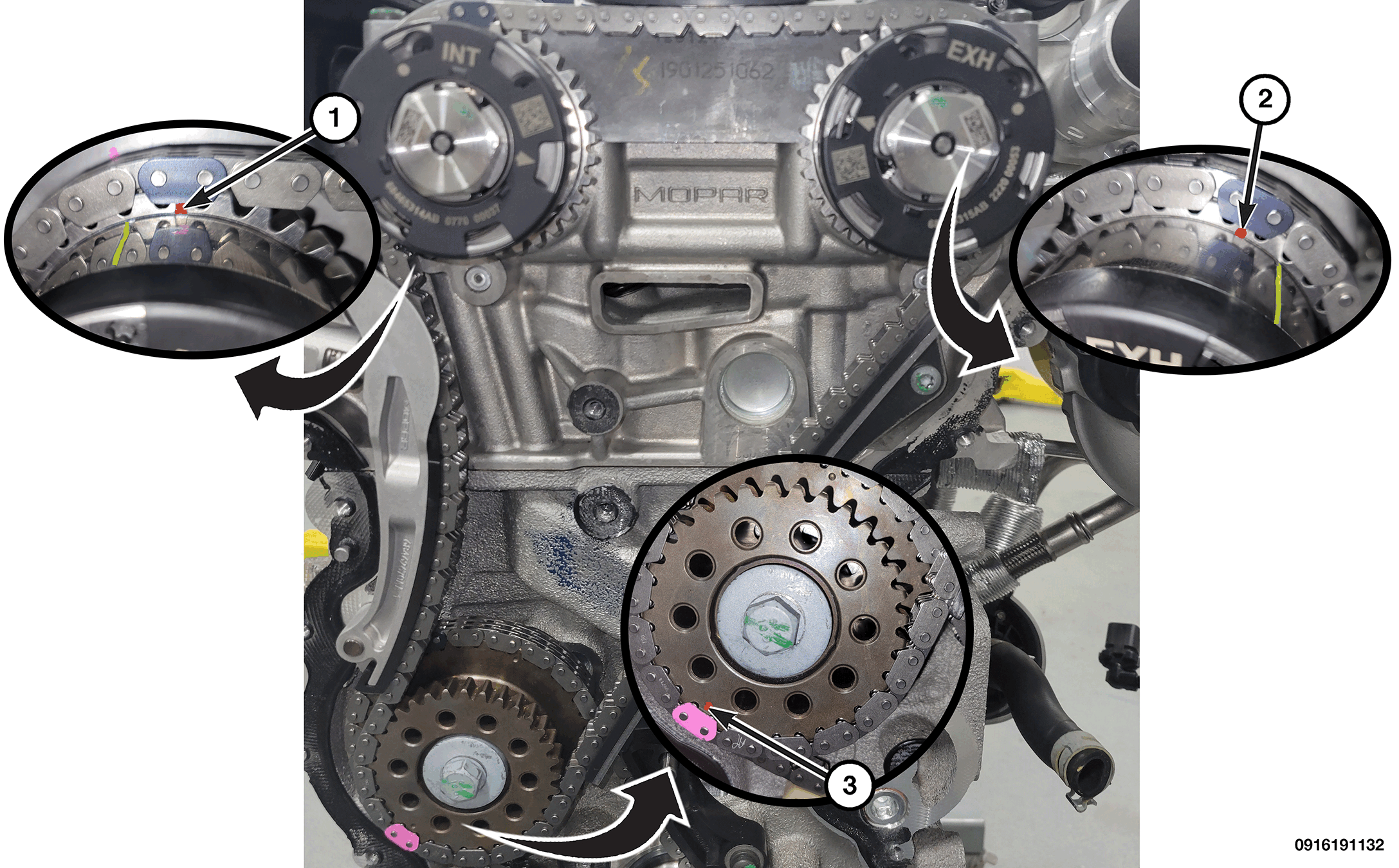

   Courtesy of CHRYSLER GROUP, LLC

   1 - Intake Phaser Timing Mark

   2 - Exhaust Phaser Timing Mark

   3 - Fuel Pump Camshaft Sprocket Timing Mark

5. Verify that the fuel pump camshaft sprocket mark aligns with the pink chain link.

PRIMARY TIMING CHAIN VERIFICATION

1. The two dark chain links should align with the fuel pump camshaft sprocket mark in the middle.
2. The crankshaft sprocket mark should align with the pink chain link.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fuel Pump Camshaft Sprocket Timing Mark

   2 - Crankshaft Sprocket Timing Mark
