Disassembly And Assembly - Off Vehicle

DISASSEMBLY

The intake and exhaust springs are NOT interchangeable. Mark the springs accordingly for installation. Correctly identify the part numbers for new springs being installed.

Courtesy of CHRYSLER GROUP, LLC

1. Install the (special tool #10224, Adapter, Valve Spring) on the (special tool #C-3422-D, Compressor, Valve Spring).
2. Install the valve spring compressor on the cylinder head.

   Courtesy of CHRYSLER GROUP, LLC

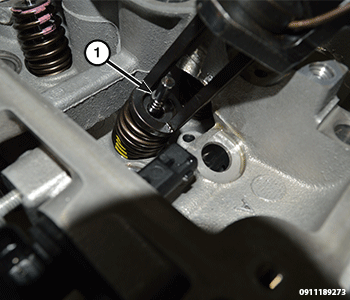

   1 - Valve Retaining Locks

3. Using the (special tool #10224, Adapter, Valve Spring) mounted in the (special tool #C-3422-D, Compressor, Valve Spring), compress valve spring and remove the valve spring retaining locks and discard them.
   NOTE:

   The intake and exhaust springs are NOT interchangeable. Mark the springs accordingly for installation. Correctly identify the part numbers for new springs being installed.

   NOTE:

   If the springs are to be reused, identify their positions so that they can be reassembled into their original locations.

4. Release the valve spring compression and remove the valve spring retainer, and valve spring.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Valve Guide Seal

5. Remove the valve guide seal.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Valve

6. Before removing the valves, remove any burrs from the valve stem retainer lock grooves and stem tip.
7. Remove the valve(s). Identify each valve to ensure installation in the original location.
8. If the valve face requires resurfacing. Refer to INTAKE AND EXHAUST VALVES REFACING  .

ASSEMBLY

Follow the disassembly procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• If the valves or valve seats have been refinished, check the valve stem tip height. If the valve stem tip height exceeds the specification, grind the valve tip until it is within specification. Refer to ENGINE SPECIFICATIONS . Verify the measurement is taken from the cylinder head surface to the top of the valve stem tip.
• Verify that the garter spring is intact around the top of the valve guide seal.
• Coat the valve stems with clean engine oil and install the valves into the cylinder head.
• If the valves are being reused, reassemble them into their original location.
