Right Middle Heat Shield: Notes

WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL AND INSTALLATION .
Remove the right front heat shield rear nut.

Courtesy of CHRYSLER GROUP, LLC

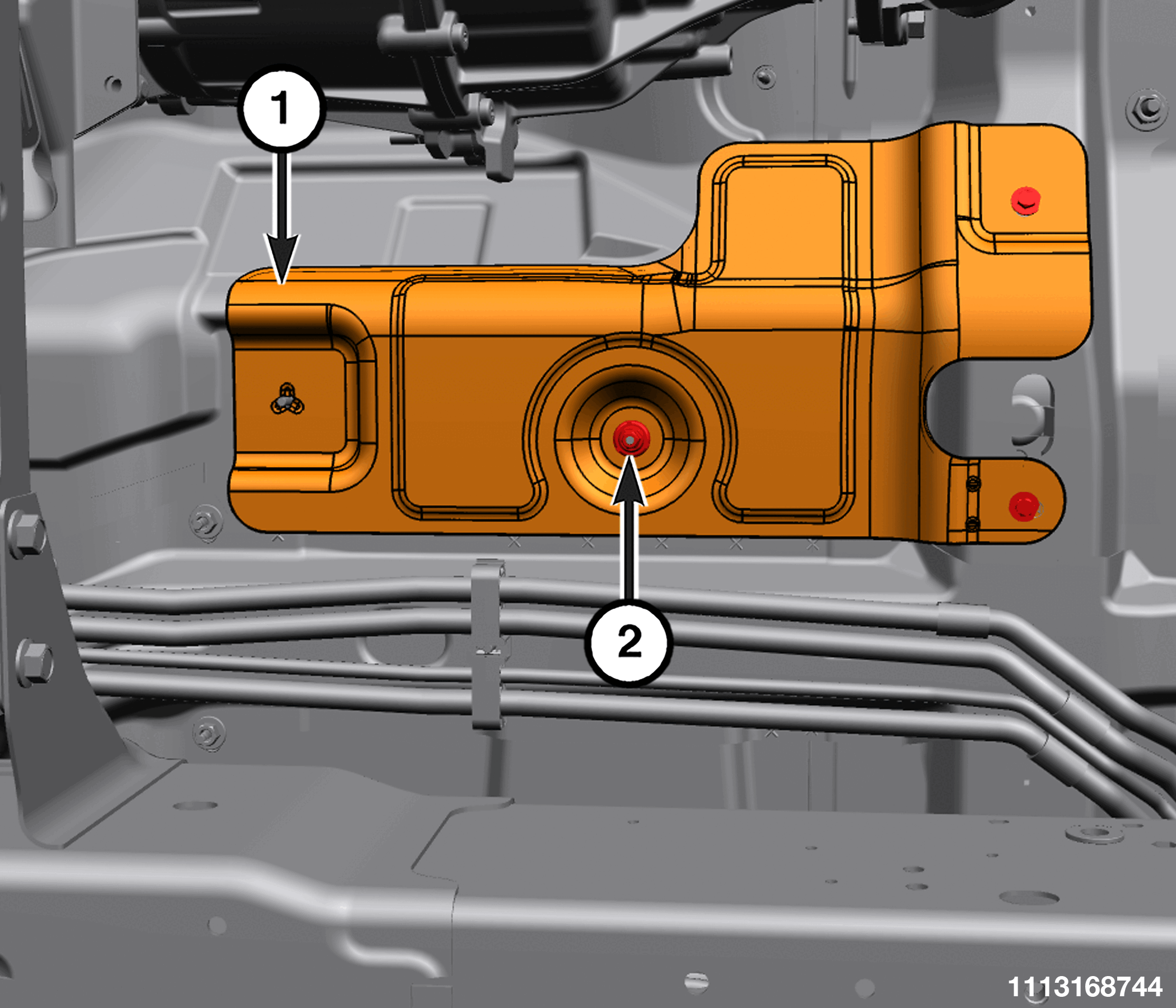

1 - Right Middle Heat Shield

2 - Right Middle Heat Shield Nuts
Remove the right middle heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
