Right Front Heat Shield: Notes

WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL AND INSTALLATION .

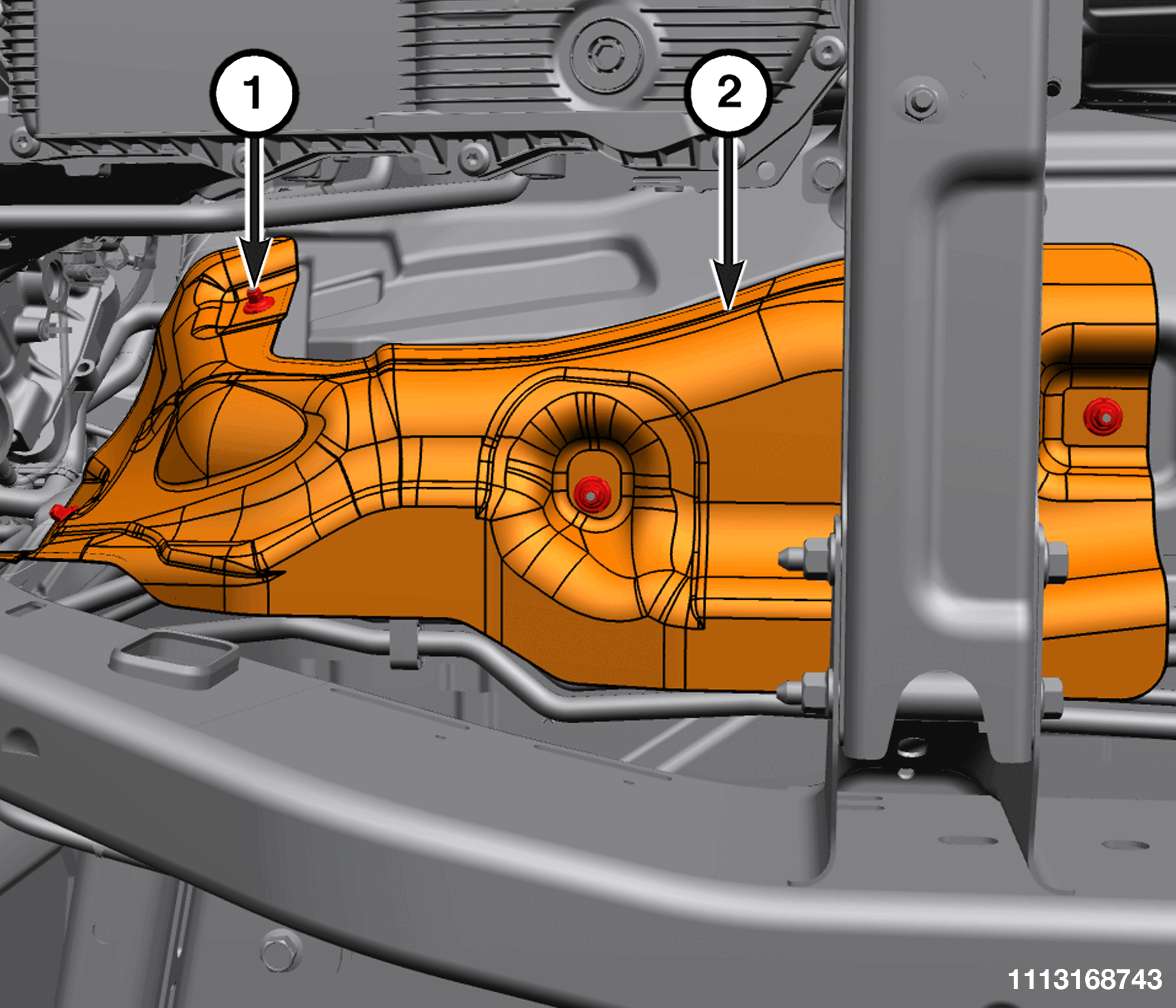

Courtesy of CHRYSLER GROUP, LLC

1 - Right Front Heat Shield Nuts

2 - Right Front Heat Shield
Remove the right front heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
