Left Rear Heat Shield: Notes

WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

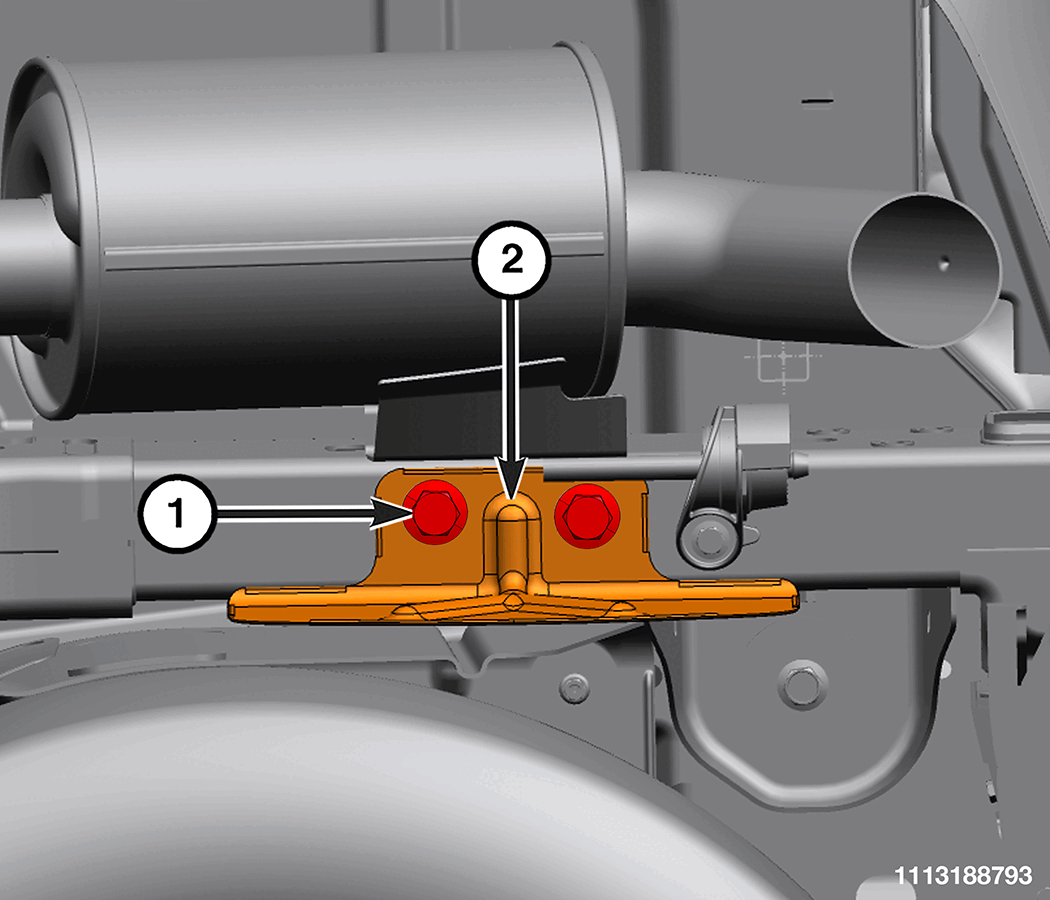

Courtesy of CHRYSLER GROUP, LLC

1 - Left Rear Heat Shield Bolts

2 - Left Rear Heat Shield
Remove the left rear heat shield bolts and the left rear heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
