Ignition Control System: Notes
WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

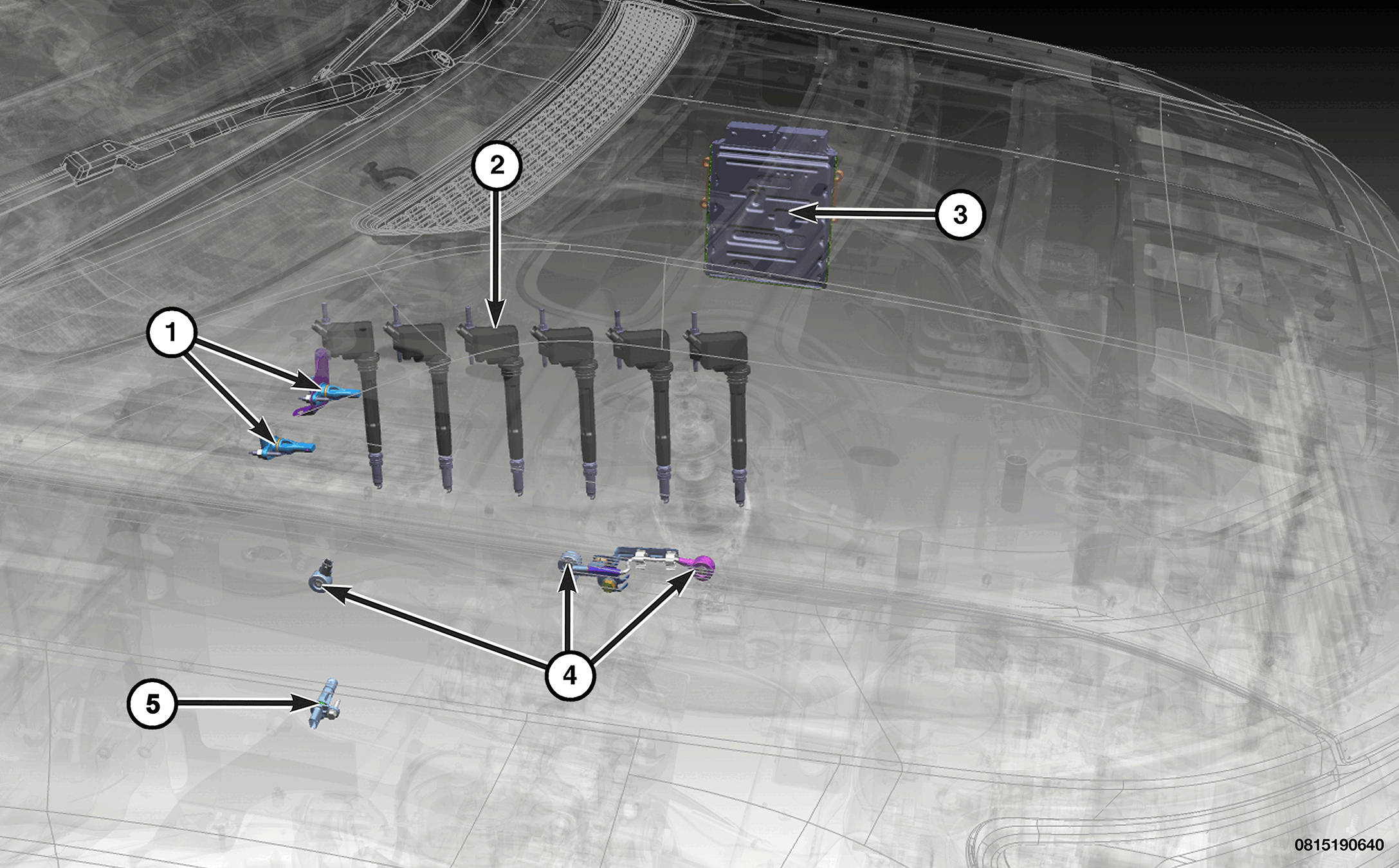

The Ignition Control system consists of the following components:
COMPONENT INDEX
| 1. |
Camshaft Position (CMP) Sensor |
| 2. |
Ignition Coil |
| 3. |
Powertrain Control Module (PCM) |
| 4. |
Knock Sensor |
| 5. |
Crankshaft Position (CKP) Sensor |
