Vent Blocker Valve
Observe the following precautions when working on fuel systems: No sparks, open flames or smoking. Avoid inhaling and swallowing fuel. Avoid eye and skin contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing. Failure to observe these precautions may result in fire, explosion, property damage, and serious or fatal injury.
High-pressure fuel lines deliver fuel under extreme pressure from the injection pump to the injectors. This could be as high as 410 bar (5, 946 psi). Use extreme caution when inspecting for high-pressure fuel leaks. Inspect for high-pressure fuel leaks with a sheet of cardboard. Wear safety goggles and adequate protective clothing when servicing fuel system. Fuel under this amount of pressure can penetrate skin causing serious or fatal injury.
REMOVAL
- Perform the fuel system pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
- Remove the rear driver side splash shield. Refer to REAR WHEELHOUSE SPLASH SHIELD .
- Disconnect the fuel lines from the vapor canister and underbody fuel lines.

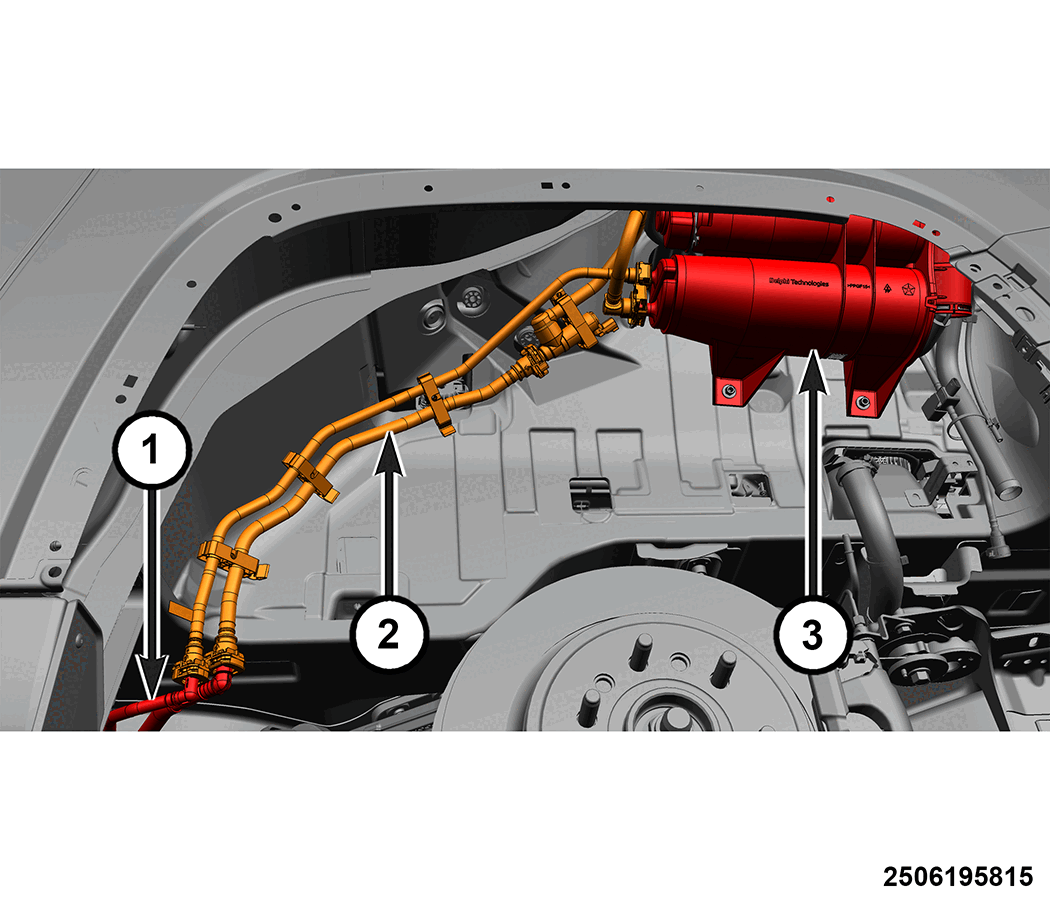

1 - Underbody Fuel Lines 2 - Fuel Line with Vent Blocker Valve (Vapor Canister to Underbody Fuel Lines) 3 - Vapor Canister - Remove the fuel line with vent blocker valve.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
