Diagnostic Test

READ AND RECORD DTCS AND ENVIRONMENTAL DATA - ERASE DTCS AND CHECK FOR DTC TO RETURN
1. With the scan tool, read DTCs in all Electronic Control Units (ECU's) and record on the repair order.
2. With the scan tool, run a vehicle Scan Report, or record the Environmental Data related to the DTCs.
3. NOTE: A front door must remain open whenever checking or erasing Radio DTCs.
4. With the scan tool, record and erase the Radio DTCs.
5. Cycle the ignition switch from on to off, wait five seconds and then back to on.
6. Turn the Radio on and set the volume to 25.
7. Adjust the speakers to the front and center.
8. With the scan tool, read the active Radio DTCs.
  NOTE:
  A front door must remain open whenever checking or erasing Radio DTCs.

  Did the DTC return?

  Yes
  - Go To Next Step.
  No
  - Perform the TESTING FOR AN INTERMITTENT CONDITION diagnostic procedure. Refer to: TESTING FOR AN INTERMITTENT CONDITION .

CHECK THE J202 BLUETOOTH CABLE AND CONNECTIONS

Turn the ignition off.
Inspect the Bluetooth cable connection at the rear of the Radio.

Inspect the Bluetooth cable connection at Bluetooth/WiFi Antenna.

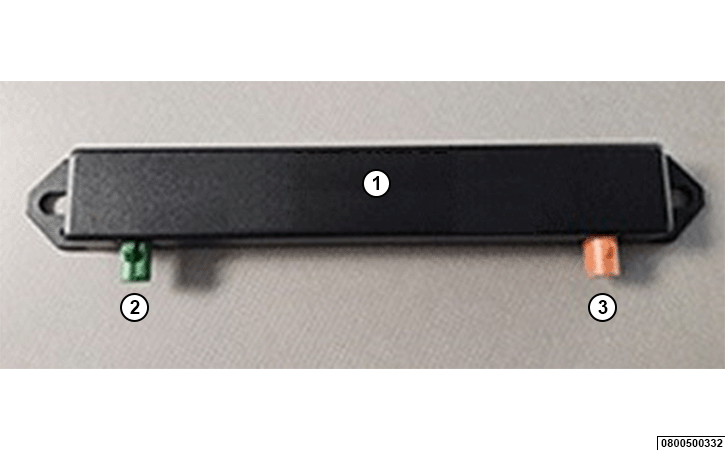

GC0221779

Courtesy of CHRYSLER GROUP, LLC

1 - Bluetooth®/Wi-Fi Antenna

2 - Wi-Fi Connection

3 - Bluetooth® Connection

Inspect the Bluetooth cable for damage or an open or shorted condition.
Were any problems found?

Yes
- Repair or replace the Bluetooth antenna cable or connection as needed. Refer to: ANTENNA, BLUETOOTH/Wi-Fi, REMOVAL AND INSTALLATION .
- Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
No
- Go To Next Step.

TEST THE BLUETOOTH ANTENNA
1. Connect the special tool # 9977-6-WiFi-BT, (WiFi Blue Tooth Antenna)
2. Turn the ignition on.
3. With the scan tool, erase DTCs.
4. Cycle the ignition switch from on to off, wait five seconds and then back to on.
5. Adjust the speakers to the front and center.
  Is the DTC active?

  Yes
  - Replace the Radio in accordance with the Service Information. Refer to: RADIO, REMOVAL AND INSTALLATION .
  - Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
  No
  - Replace the Bluetooth Antenna in accordance with the Service Information. Refer to: ANTENNA, BLUETOOTH/Wi-Fi, REMOVAL AND INSTALLATION .
  - Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
