Pop Rivet Sealing Plugs
WARNING: This page is about a different car, the 2024 Jeep Grand Wagoneer L and 2024 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.

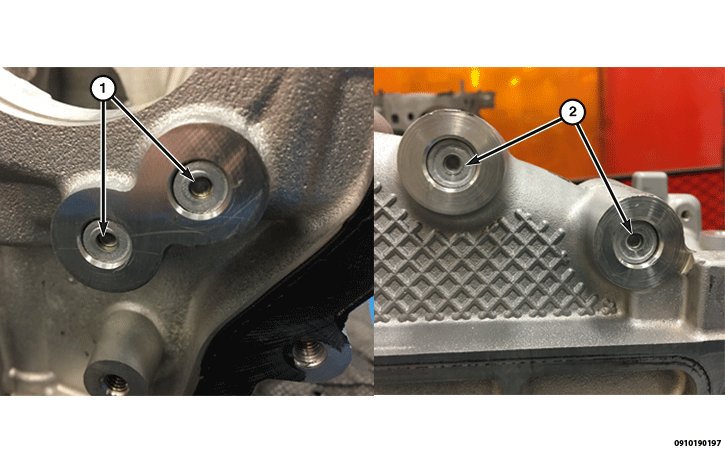

| 1 - Oil Gallery Pop Rivet Sealing Plugs |
| 2 - Coolant Passage Pop Rivet Sealing Plugs |
The cylinder head utilizes pop rivet style sealing plugs for engine oil galleries and coolant passages.
- Oil Gallery Plugs - There are 11 oil gallery plugs on the four side faces of the cylinder head.
- Coolant Passage Plugs - There are 4 coolant plugs on the lower deck face of the cylinder head.
NOTE:
These pop rivet style plugs are not serviceable. If these plugs develop a leak, the cylinder head must be replaced.
